1600°C Box Furnace with Large Furnace Chamber
PRODUKTPARAMETER
Beschreibung
1600℃ Large-Capacity Box Furnace
This 1600℃ large-capacity box furnace is specifically designed for high-temperature material processing and heat treatment of large workpieces. The equipment features a large-capacity furnace structure, combined with a high-efficiency silicon molybdenum rod heating system and intelligent temperature control technology, providing a stable and uniform high-temperature environment to meet the stringent requirements of temperature accuracy and consistency in high-temperature sintering, Wärmebehandlung, and experimental research.
Produktmerkmale
- Large Furnace Chamber Design
The box-type electric furnace adopts a large-size furnace chamber structure, which meets the needs of medium and large workpieces and batch processing, and helps to improve production efficiency and experimental space utilization.
- Stable High-Temperature Performance
The equipment can reach a maximum temperature of 1600℃ and can operate stably at high temperatures for extended periods, meeting the requirements of high-temperature processes such as ceramic sintering and metal heat treatment.

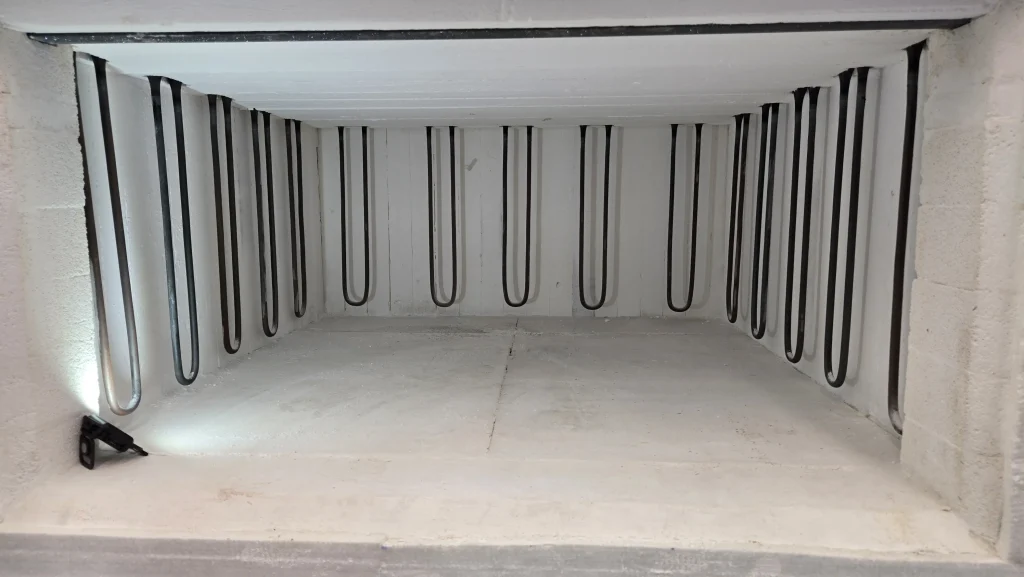

- Silicon Molybdenum Rod Heating System
Using U-shaped silicon molybdenum rods as heating elements, it boasts excellent high-temperature resistance and is suitable for high-temperature oxidation environments, ensuring long-term reliable operation of the equipment.
- Uniform Temperature Field Design
Heating elements are rationally distributed on both sides and the rear of the furnace chamber, effectively improving the temperature uniformity within the furnace and reducing process deviations caused by temperature differences.

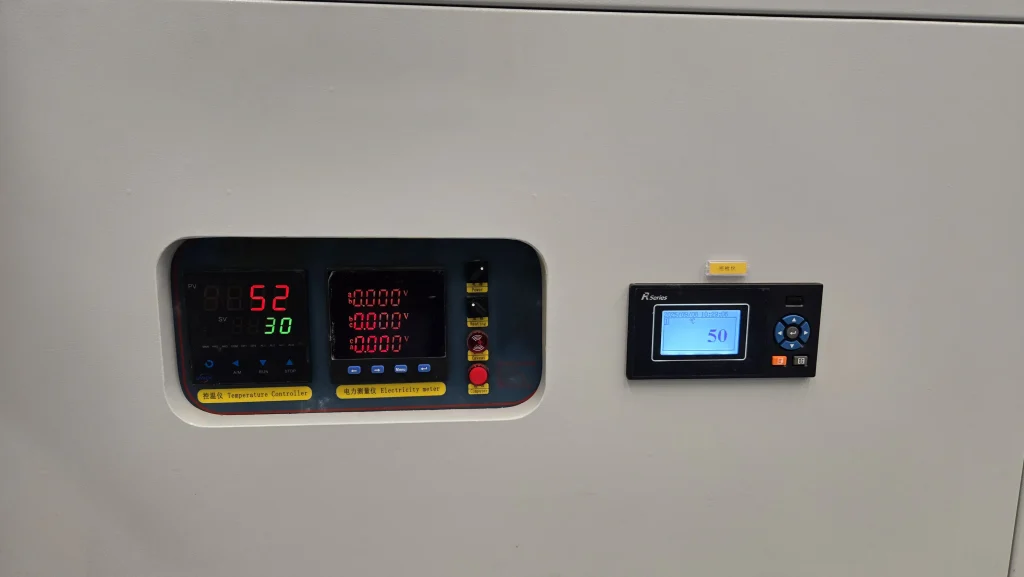

- Intelligent Temperature Control System
Equipped with an intelligent temperature control system, it supports multi-segment program temperature control and multiple curve recalls, enabling automatic control of the entire heating, halten, and cooling process.
| Category | 1600℃ Model |
| Kammergröße & Leistung | Depth-Width-Height: 800×800×400 mm; Leistung: 50KW |
| AC Power Supply | 380V |
| Temperatursensor | Platinum-rhodium B-type thermocouple, measuring range: 0-1600℃ |
| Installation des Heizelements | Vertically installed on both inner sides & rear side of the chamber |
| Genauigkeit der Temperaturregelung | ±1℃ (Integrated circuit control, no temperature overshoot) |
| Control Points | 1 temperature control point |
| Recorder | Equipped with one paperless recorder |
| Furnace Temperature Uniformity | ±6℃ (Subject to chamber size) |
| Heizrate | Below 1000℃: ＜15℃/min1000℃~1400℃: ＜10℃/minAbove 1400℃: ＜5℃/min |
| Heizkörper | U-shaped molybdenum disilicide rod |
| Door Opening Mode | Side opening door |
| Feuerfestes Material | High-purity alumina fiber, vacuum-formed lightweight fiber board |
| Isoliermaterial | 3-layer insulation: Baumwolle aus Aluminiumoxidfasern + Aluminiumfaserplatte + Polykristalline Faserplatte aus Aluminiumoxid; energy saving efficiency over 80% higher than traditional furnaces |
| Shell Surface Temperature | ＜45℃ during long-term continuous operation |
| Safety Protection | Integrated module control with dual-loop control & protection; functions include overshoot, Thermoelementbruch, Phasenverlust, Überspannung, Überstrom, Übertemperatur, aktuelles Feedback, soft start; overtemperature alarm & automatic power off to avoid overheating |
| Display Parameters | Temperatur, Segmentnummer, Segmentzeit, verbleibende Zeit, Prozentsatz der Ausgangsleistung, Stromspannung, aktuell, usw. |
Anwendungsbereiche (Kastenofen)
- Ultra-High Temperature Ceramics: Suitable for sintering and heat treatment of ultra-high temperature ceramic materials such as silicon carbide, Siliziumnitrid, und Zirkonoxid. The 0.256 cubic meter furnace can process a large number of ceramic products simultaneously. This box furnace is an ideal choice for ultra-high temperature ceramic manufacturers.
- Metal Heat Treatment: Geeignet zum Glühen, Sintern, and melting heat treatment processes of refractory metals such as tungsten, molybdenum, tantalum, and niobium. Precise temperature control and a uniform temperature field meet the stringent requirements of ultra-high temperature processes for refractory metals. As a professional laboratory furnace, it performs exceptionally well in the field of refractory metal processing.
- New Material Research and Development: Suitable for ultra-high temperature synthesis and heat treatment process research of new materials such as special ceramics, Verbundwerkstoffe, and nanomaterials. Equipped with a paperless recorder, it can completely record process data. A fully functional box furnace is an essential piece of equipment for new material research and development.
- Powder Metallurgy: Suitable for ultra-high temperature sintering and forming of metal powders and ceramic powders. Three-sided heating technology ensures uniform temperature for large-sized products, improving yield.
Unternehmensprofil
Ein professionelles Unternehmen, das sich auf Dienstleistungen im Bereich Wärmebehandlungstechnologie und die R. spezialisiert hat&D, Herstellung, und Vertrieb von Hochtemperatur-Elektroöfen.
Das Unternehmen konzentriert sich auf die Entwicklung von Hochtemperatur-Elektroöfen, die einen gesamten Temperaturbereich von -100℃ bis 2600℃ abdecken. Zu seinen Produkten gehören experimentelle Elektroöfen, Vakuumatmosphärenöfen, Industrieöfen, und Mittelfrequenz-Induktionsheizgeräte. Zu den Hauptprodukten gehören Kastenöfen, Rohröfen, Hebeöfen, Schuböfen, Drehgestellöfen, Drehrohröfen, Tunnelöfen, und verschiedene spezialisierte Mittelfrequenzöfen.
Das Unternehmen setzt auf technologische Innovation und hat die ISO9001- und EU-CE-Zertifizierungen bestanden. Es besitzt 21 eingetragene Marken, 29 Patente, Und 27 Software-Urheberrechte.
Zahlungsmethoden
TT
Versandarten
Der Elektroofen ist in drei Schichten verpackt: zunächst in Schaumstoffpapier eingewickelt, dann in Plastikfolie eingewickelt, und schließlich in einer Holzkiste verpackt.
1600℃ Large-Cabin Box Furnace – Häufig gestellte Fragen (FAQ)
- With such a large furnace chamber, is the temperature uniform at 1600℃?
The heating elements are U-shaped silicon molybdenum rods, vertically installed on both sides and the rear of the furnace chamber (three-sided heating). Temperature control accuracy is ±1 degree Celsius, and furnace temperature uniformity is ±6 degrees Celsius. Combined with a high-purity alumina fiber lining and multi-layer insulation structure, it is suitable for large-sized workpieces or batch processing.
- Are the heating elements durable?
The heating elements are U-shaped silicon molybdenum rods; two spare rods are included.
- How is the heating rate controlled?
The heating rate is controlled in segments: below 1000℃, less than 15℃/min; 1000-1400℃, less than 10℃/min; above 1400℃, less than 5℃/min. A maximum heating/cooling rate of 10-20℃/min is recommended; excessively rapid heating will shorten the lifespan of the heating elements.
- Can an atmosphere be passed through?
This box furnace does not have a vacuum seal structure and flammable or explosive gases must not be introduced. The introduction of corrosive gases is not recommended. If it is necessary to introduce highly corrosive gases (such as sulfur, sodium, usw.), the manufacturer must be informed in advance for special treatment of the furnace lining.
- Will the furnace lining crack?
After a period of use, minor cracks may appear in the furnace lining. This is normal and will not affect use. They can be repaired with an alumina coating.
