Frit Furnace Crucible Dense Zirconia Corundum
PARÁMETROS DEL PRODUCTO
Descripción

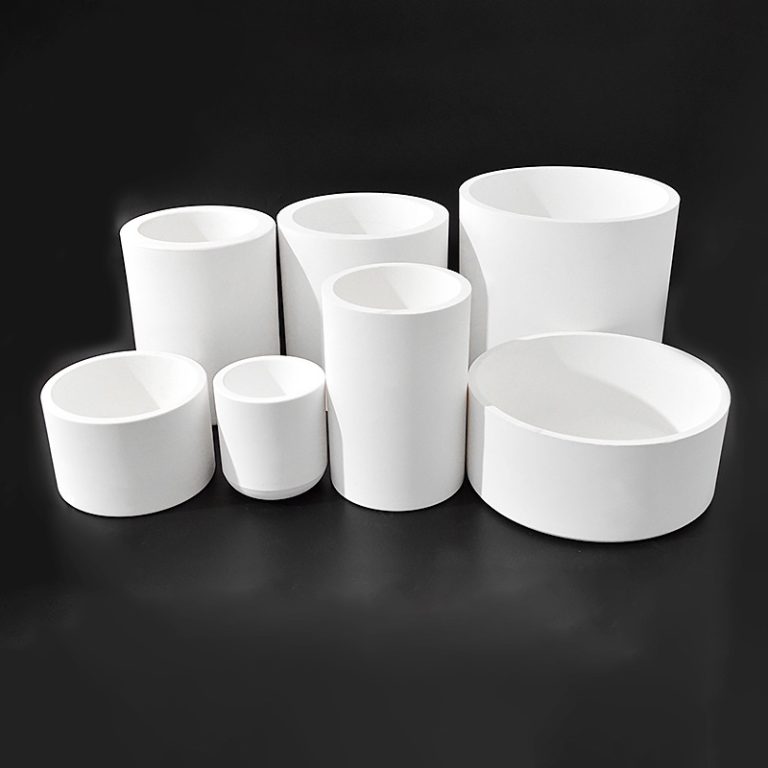

Dense Zirconia-Corundum Crucible for Frit Furnaces
This dense zirconia-corundum crucible for frit furnaces is a specialized refractory vessel manufactured through high-temperature, dense sintering using high-purity alumina, zirconia, and silica as primary raw materials. The product features excellent high-temperature performance, resistencia al choque térmico, and resistance to corrosion by molten glass. It is specifically designed for glass melting operations—such as those in frit furnaces—and is suitable for high-temperature melting processes involving ceramic frits, glass glazes, and similar materials.
Características del producto
- High Zirconia Content; Strong Corrosion Resistance
With a ZrO₂ content of 41.058% combined with 44.089% Al₂O₃, the material forms a dense zirconia-corundum structure. It offers excellent chemical corrosion resistance against high-temperature melts—such as molten glass and frit—effectively extending the crucible’s service life.
- Dense Structure; Excellent Thermal Shock Resistance
Produced via a high-temperature densification sintering process, the material features a dense structure and low porosity. It exhibits superior thermal shock resistance, enabling it to withstand the frequent temperature fluctuations of frit furnaces without cracking.
- Low Impurity Content; No Contamination of Melt
With Fe₂O₃ and TiO₂ contents of only 0.049% y 0.073% respectively, the material contains minimal harmful impurities. It does not react with frit or glaze at high temperatures, effectively ensuring the purity of the melted material.
- Stable High-Temperature Performance
The zirconia-corundum material maintains structural stability and resists deformation at high temperatures. It withstands erosion by molten glass, making it suitable for the continuous, long-term operation of frit furnaces.
| Test Item | Test Result |
|---|---|
| Al₂O₃ (%) | 44.089 |
| SiO₂ (%) | 12.234 |
| ZrO₂ (%) | 41.058 |
| HfO₂ (%) | 0.844 |
| TiO₂ (%) | 0.073 |
| Fe₂O₃ (%) | 0.049 |
| K₂O (%) | 0.076 |
| Na₂O (%) | 1.177 |
| CaO (%) | 0.038 |
| MgO (%) | 0.017 |
Áreas de aplicación
- Ceramic Frit Melting: Used for melting and holding ceramic frit in frit furnaces.
- Glass Glaze Melting: Suitable for high-temperature melting processes involving glass glazes, pigments, and similar materials.
- Specialty Glass Industry: Used as a melting vessel for optical glass and specialty glass.
- Non-ferrous Metal Smelting: Suitable for high-temperature smelting applications requiring superior corrosion resistance.
Perfil de la empresa
Una empresa profesional especializada en servicios de tecnología de tratamiento térmico y R.&D, fabricación, y venta de hornos eléctricos de alta temperatura.
La empresa se centra en el desarrollo de hornos eléctricos de alta temperatura que cubren un rango completo de temperatura de -100 ℃ a 2600 ℃.. Entre sus productos se encuentran hornos eléctricos experimentales., hornos de atmósfera de vacío, hornos industriales, y equipos de calentamiento por inducción de media frecuencia. Los principales productos incluyen hornos de caja., hornos tubulares, hornos elevadores, hornos de empuje, hornos de bogie, hornos rotativos, hornos de túnel, y varios hornos especializados de media frecuencia.
La empresa se adhiere a la innovación tecnológica y ha aprobado las certificaciones ISO9001 y CE de la UE.. posee 21 marcas registradas, 29 patentes, y 27 derechos de autor del software.
Métodos de pago
TT
Métodos de envío
The electric furnace is packaged in thThe electric furnace is packaged in three layers: primero envuelto en papel de espuma, luego envuelto en película plástica, y finalmente embalado en una caja de madera..
Preguntas frecuentes (Preguntas frecuentes)
- What are the main advantages of dense zirconia-corundum crucibles?
The primary advantages are excellent corrosion resistance—derived from high zirconia content—and good thermal shock resistance due to the material’s dense structure. Additionally, the extremely low impurity content ensures no contamination of the melt, making them suitable for the long-term, high-temperature operation of frit furnaces.
- What is the applicable temperature range for these crucibles?
The dense zirconia-corundum material can withstand temperatures exceeding 1600°C. Specific operating temperatures can be determined based on the customer’s process conditions; we recommend consulting a sales engineer.
- Can the products be customized to specific dimensions?
Sí. Crucibles can be customized in various shapes and sizes based on the customer’s frit furnace model, capacity, and process requirements.
- Will the crucible affect the color or properties of the frit or glaze?
No. The product has extremely low levels of impurities such as Fe₂O₃ and TiO₂ and exhibits excellent chemical stability at high temperatures. It does not react with the melt, effectively ensuring the purity and color quality of the molten material.
- How can the service life of the crucible be extended?
It is recommended to raise and lower the temperature slowly in accordance with operating procedures to avoid rapid heating or cooling. Do not strike the bottom of the crucible when charging materials; periodically inspect the inner walls for corrosion and replace the crucible in a timely manner.
