Frit Furnace Crucible Dense Zirconia Corundum
제품 매개변수
설명

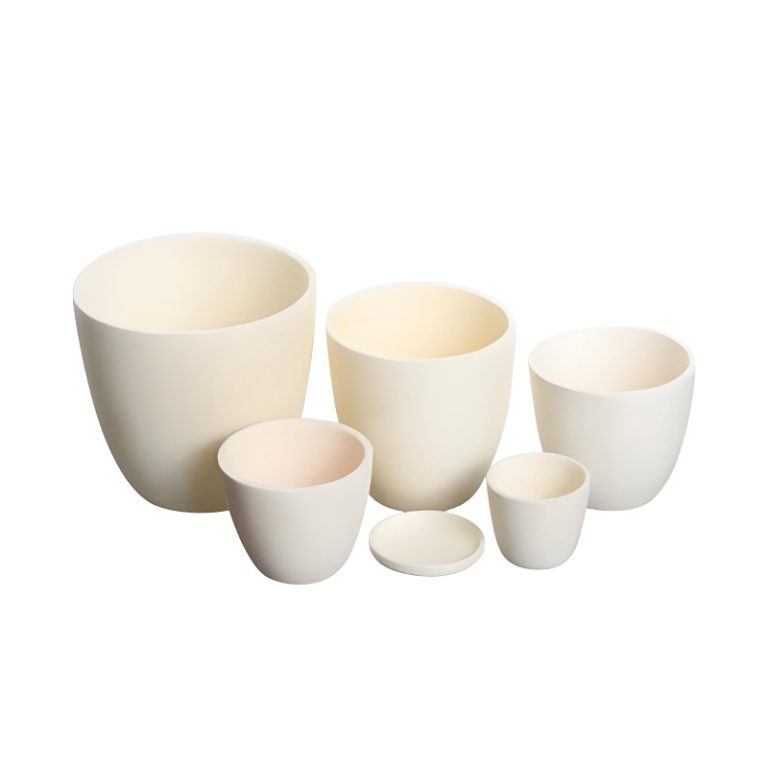

Dense Zirconia-Corundum Crucible for Frit Furnaces
This dense zirconia-corundum crucible for frit furnaces is a specialized refractory vessel manufactured through high-temperature, dense sintering using high-purity alumina, zirconia, and silica as primary raw materials. The product features excellent high-temperature performance, thermal shock resistance, and resistance to corrosion by molten glass. It is specifically designed for glass melting operations—such as those in frit furnaces—and is suitable for high-temperature melting processes involving ceramic frits, glass glazes, and similar materials.
제품특징
- High Zirconia Content; Strong Corrosion Resistance
With a ZrO₂ content of 41.058% combined with 44.089% Al₂O₃, the material forms a dense zirconia-corundum structure. It offers excellent chemical corrosion resistance against high-temperature melts—such as molten glass and frit—effectively extending the crucible’s service life.
- Dense Structure; Excellent Thermal Shock Resistance
Produced via a high-temperature densification sintering process, the material features a dense structure and low porosity. It exhibits superior thermal shock resistance, enabling it to withstand the frequent temperature fluctuations of frit furnaces without cracking.
- Low Impurity Content; No Contamination of Melt
With Fe₂O₃ and TiO₂ contents of only 0.049% 그리고 0.073% respectively, the material contains minimal harmful impurities. It does not react with frit or glaze at high temperatures, effectively ensuring the purity of the melted material.
- Stable High-Temperature Performance
The zirconia-corundum material maintains structural stability and resists deformation at high temperatures. It withstands erosion by molten glass, making it suitable for the continuous, long-term operation of frit furnaces.
| Test Item | Test Result |
|---|---|
| Al₂O₃ (%) | 44.089 |
| SiO₂ (%) | 12.234 |
| ZrO₂ (%) | 41.058 |
| HfO₂ (%) | 0.844 |
| TiO₂ (%) | 0.073 |
| Fe₂O₃ (%) | 0.049 |
| K₂O (%) | 0.076 |
| Na₂O (%) | 1.177 |
| CaO (%) | 0.038 |
| MgO (%) | 0.017 |
응용분야
- Ceramic Frit Melting: Used for melting and holding ceramic frit in frit furnaces.
- Glass Glaze Melting: Suitable for high-temperature melting processes involving glass glazes, pigments, and similar materials.
- Specialty Glass Industry: Used as a melting vessel for optical glass and specialty glass.
- 비철금속 제련: Suitable for high-temperature smelting applications requiring superior corrosion resistance.
회사 프로필
열처리 기술 서비스 및 R 전문 기업&디, 조작, 고온전기로 판매 및 판매.
-100℃ ~ 2600℃의 전온도 범위를 커버하는 고온 전기로 개발에 주력하고 있습니다.. 해당 제품에는 실험용 전기로가 포함됩니다., 진공 분위기 용광로, 산업 가마, 및 중주파 유도 가열 장비. 주요 제품으로는 상자로(Box Furnace)가 있습니다., 튜브 용광로, 리프팅 용광로, 푸셔 가마, 보기 용광로, 회전식 가마, 터널 가마, 다양한 전문 중주파로.
회사는 기술 혁신을 고수하고 ISO9001 및 EU CE 인증을 통과했습니다.. 그것은 소유 21 등록상표, 29 특허, 그리고 27 소프트웨어 저작권.
결제 방법
TT
배송 방법
전기로는 3단으로 포장되어 있습니다.전기로는 3겹으로 포장되어 있습니다.: 먼저 발포 종이로 포장, 그런 다음 플라스틱 필름으로 싸서, 그리고 마침내 나무 상자에 포장되었습니다..
자주 묻는 질문 (FAQ)
- What are the main advantages of dense zirconia-corundum crucibles?
The primary advantages are excellent corrosion resistance—derived from high zirconia content—and good thermal shock resistance due to the material’s dense structure. Additionally, the extremely low impurity content ensures no contamination of the melt, making them suitable for the long-term, high-temperature operation of frit furnaces.
- What is the applicable temperature range for these crucibles?
The dense zirconia-corundum material can withstand temperatures exceeding 1600°C. Specific operating temperatures can be determined based on the customer’s process conditions; we recommend consulting a sales engineer.
- Can the products be customized to specific dimensions?
예. Crucibles can be customized in various shapes and sizes based on the customer’s frit furnace model, capacity, and process requirements.
- Will the crucible affect the color or properties of the frit or glaze?
아니요. The product has extremely low levels of impurities such as Fe₂O₃ and TiO₂ and exhibits excellent chemical stability at high temperatures. It does not react with the melt, effectively ensuring the purity and color quality of the molten material.
- How can the service life of the crucible be extended?
It is recommended to raise and lower the temperature slowly in accordance with operating procedures to avoid rapid heating or cooling. Do not strike the bottom of the crucible when charging materials; periodically inspect the inner walls for corrosion and replace the crucible in a timely manner.
