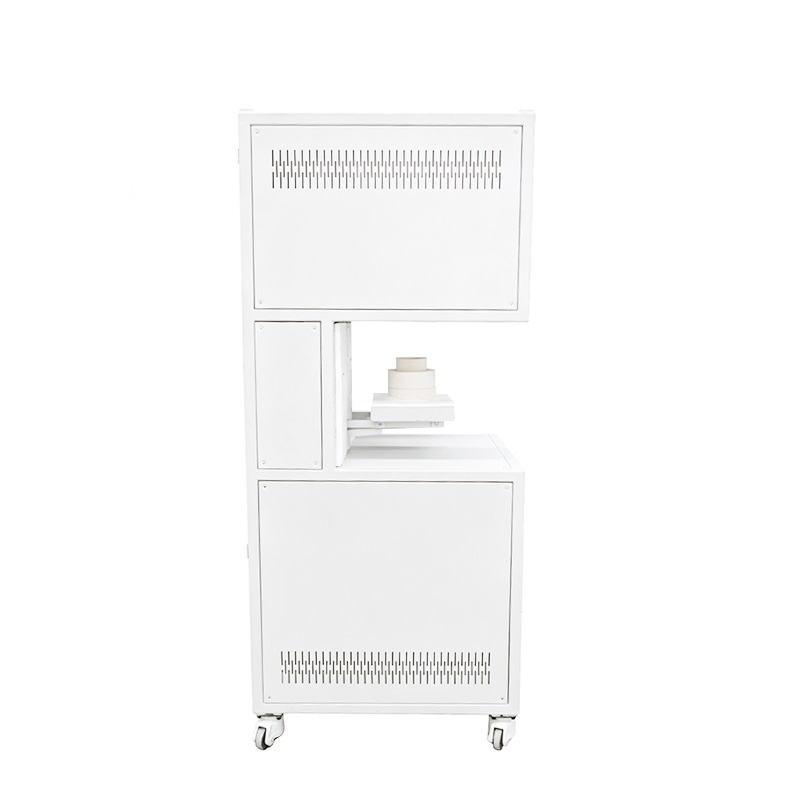

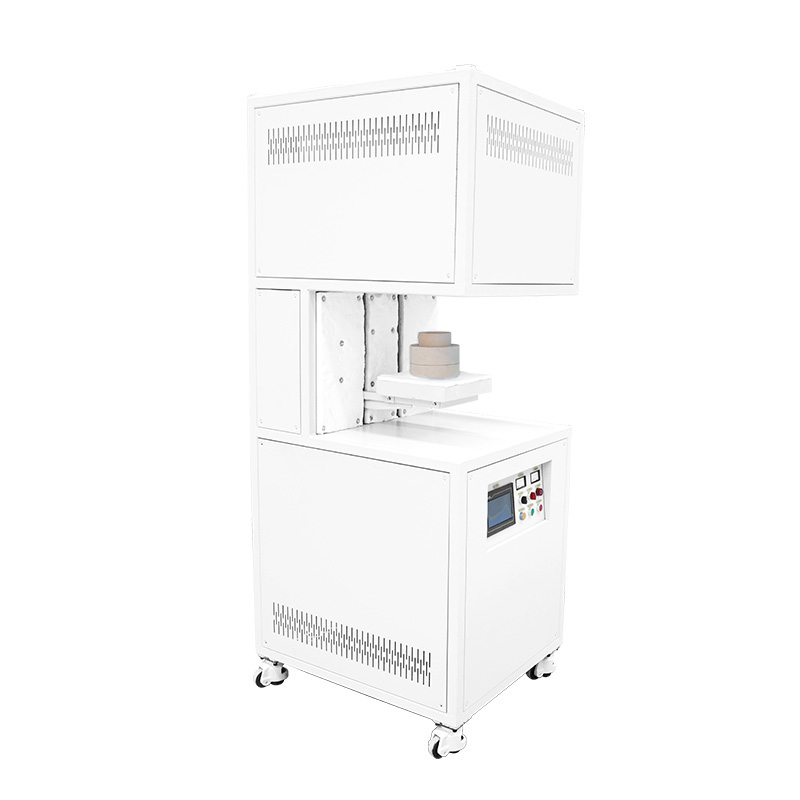

Small 1700°C Electric Resistance Furnace with Lift-Type Hearth
PRODUCT PARAMETERS
Description

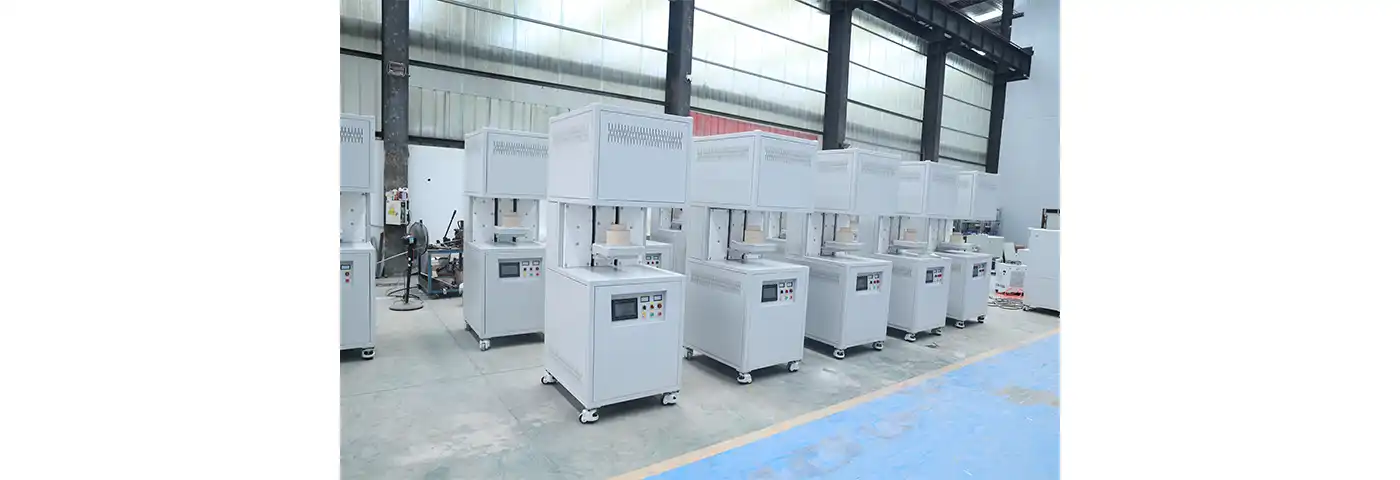

1700°C Small-Scale Electric Elevator Resistance Furnace
This is a compact 1700°C electric resistance furnace with a lifting mechanism, utilizing molybdenum disilicide (MoSi2) heating elements. While it has a maximum temperature rating of 1700°C, the recommended operating temperature for long-term use is 1650°C or below. The furnace chamber measures 130 mm in diameter and 150 mm in height. A lead-screw mechanism—featuring adjustable speed and a maximum load capacity of 30 kg—is used to raise and lower the hearth for loading and unloading.
Equipped with an intelligent temperature control system supporting various control modes—such as PID, APID, and MPT—the furnace enables multi-stage programmed heating, holding, and cooling. It is suitable for high-temperature experiments in fields including ceramics, metallurgy, electronics, new materials, and specialty materials.
Product Features
- 1700°C High-Temperature Heating
The maximum operating temperature is 1,700°C, with a continuous operating temperature of 1,650°C. Six molybdenum disilicide (MoSi2) heating elements are arranged around the furnace.

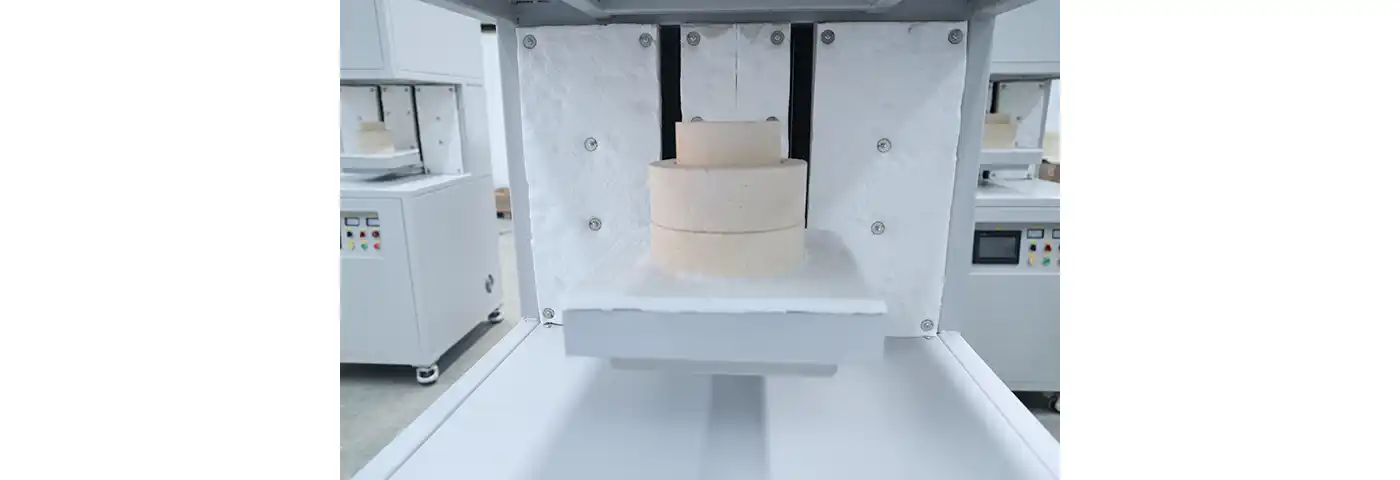

- Compact Lift-Type Structure
The furnace chamber measures Φ130×150 mm and features a lead-screw-driven lifting platform for sample loading. The lifting mechanism is positioned at the rear of the furnace body to minimize the impact of the high-temperature zone on the operating components. A variable-speed gear motor controls the vertical movement, allowing for adjustable speeds.
- Precise, Intelligent Temperature Control
Temperature control accuracy reaches ±1°C, with a chamber temperature uniformity of approximately ±3°C. The heating rate is fully adjustable, ranging from a maximum of ~10°C/min down to 1°C/h, meeting the requirements of various experimental processes.
- Comprehensive Safety Protection
The system employs dual-circuit control and protection. Safety features include safeguards against over-temperature, over-current, over-voltage, phase loss, thermocouple breakage, overshoot, and undershoot, as well as current feedback and soft-start capabilities, ensuring safe equipment operation.
- Efficient Thermal Insulation and Air-Cooled Structure
The furnace lining consists of high-purity alumina hollow-sphere bricks, with a custom alumina hollow-sphere roof and external insulation made of polycrystalline alumina fibers. The furnace body features a double-shell air-cooled design, keeping the exterior casing temperature below ambient temperature +25°C during long-term operation.
| Category | Parameter |
|---|---|
| Maximum Long-Term Operating Temperature | 1650°C |
| Design Power | 6KW/380V; power automatically adjusts according to the heating rate |
| Furnace Chamber Dimensions | Diameter 130mm × Height 150mm |
| Temperature Control Accuracy | ±1°C (integrated circuit control, no overshoot) |
| Temperature Uniformity in Furnace | ±3°C |
| Temperature Measuring Element & Range | Platinum-Rhodium-Platinum B thermocouple, measuring range 0–1880°C |
| Heating Element Installation Position | Surrounding / 6 silicon-molybdenum rods |
| Temperature Controller | Instrument temperature control; ammeters and voltmeters added to both input and output; installed at the lower part of the furnace |
| Operation Switches | Furnace door lifting + emergency stop installed on the right side of the furnace for convenient operation and protection against high temperatures; cantilever bracket adopted |
| Heating Rate | Heating rate freely adjustable; adjustment range: fast heating rate up to 10°C per minute (10°C/min), slow heating rate down to 1°C per hour (1°C/h) |
| Furnace Body | The furnace body is machined with CNC machine tools and undergoes polishing, grinding, acid washing, phosphating, plastic powder spraying, high-temperature baking, etc. It features a two-tone color scheme, a novel and aesthetically pleasing appearance, and advantages such as oxidation resistance, acid and alkali resistance, corrosion resistance, high temperature resistance, and easy cleaning. Export quality, mirror-like baked finish |
| Furnace Body Structure | The furnace body adopts an air-cooled double-layer structure. An effective air-cooled guide baffle enables overall cold air circulation in the furnace shell, ultimately cooling the heating element conductive plates before discharging out of the furnace body. This avoids high-temperature oxidation of the heating element conductive plates and ensures a good working environment |
| Furnace Body Travel Mode | Inlet and outlet adopt a stepless speed reduction motor with adjustable speed |
| Furnace Body Lifting | The loading platform adopts screw-rod lifting; the screw-rod lifting position is at the rear side to avoid high temperatures and achieve higher precision |
| Refractory Fit between Furnace Opening and Loading Platform | The refractory fit between the furnace opening and the loading platform adopts a stepped cross-sealing design. The refractory has angles on both upper and lower parts. The opening angle of the loading platform increases, and gradually decreases as the loading platform closes |
| Loading Capacity | 30kg |
| Refractory Materials | The furnace lining uses high-purity alumina hollow ball bricks; the furnace top uses custom-made alumina hollow balls; the external insulation uses alumina polycrystalline fiber material; the furnace door uses a custom crucible groove |
| Furnace Body Shell Temperature | For long-term continuous operation without shutdown, the shell temperature is less than room temperature +25°C |
Application Areas
- Ceramics Industry: Sintering, calcination, and high-temperature heat treatment of ceramic materials.
- Metallurgy Industry: High-temperature processing and performance research of metal materials.
- Electronic Materials: Sintering of electronic ceramics and functional materials.
- New Materials R&D: High-temperature experiments on advanced materials, specialty materials, and inorganic materials.
Company Profile
A professional enterprise specializing in heat treatment technology services and the R&D, manufacturing, and sales of high-temperature electric furnaces.
The company focuses on developing high-temperature electric furnaces covering a full temperature range of -100℃ to 2600℃. Its products include experimental electric furnaces, vacuum atmosphere furnaces, industrial kilns, and medium-frequency induction heating equipment. Main products include box furnaces, tube furnaces, lifting furnaces, pusher kilns, bogie furnaces, rotary kilns, tunnel kilns, and various specialized medium-frequency furnaces.
The company adheres to technological innovation and has passed ISO9001 and EU CE certifications. It owns 21 registered trademarks, 29 patents, and 27 software copyrights.
Payment Methods
TT
Shipment Methods
The electric furnace is packaged in three layers: first wrapped in foam paper, then wrapped in plastic film, and finally packed in a wooden crate.
Frequently Asked Questions (FAQ)
- What is the maximum temperature of the 1700°C small-scale elevator furnace?
The equipment has a maximum operating temperature of 1700°C and a continuous operating temperature of 1650°C; it utilizes a Type B (platinum-rhodium/platinum) thermocouple for high-temperature measurement.
- What are the chamber dimensions of this elevator furnace?
The standard chamber dimensions are 130 mm in diameter and 150 mm in height. The loading platform has a maximum load capacity of 30 kg, making it suitable for the high-temperature processing of small batches of materials and experimental samples.
- How is the furnace body raised and lowered?
The loading platform utilizes a lead-screw lifting mechanism located at the rear of the furnace body. A variable-speed gear motor drives the vertical movement, allowing for adjustable operating speeds.
- Does this 1700°C electric furnace support programmable temperature control?
Yes, it does. The intelligent temperature control system supports regulation modes such as PID, APID, and MPT. It features a 30-segment program control function, allowing users to configure heating, holding, and cooling curves, as well as operations like cycling, pausing, and stopping.
- What safety protection features does the 1700°C elevator furnace have?
The equipment employs dual-circuit control and protection systems. It includes safeguards against over-temperature, over-current, over-voltage, phase loss, thermocouple breakage, overshoot, and undershoot, as well as features for current feedback and soft-start operation.
