Industrial Lifting Furnace

Industrial Lifting Furnace

Industrial Lifting Furnace are high-temperature heat treatment equipment employing a furnace bottom lifting structure, widely used in industries such as ceramics, metallurgy, electronics, glass, and new materials. Using silicon molybdenum rods as heating elements, these furnaces offer excellent high-temperature performance and strong stability, making them a common high-performance furnace in laboratories and industrial production.

The lifting structure facilitates loading and unloading, making them particularly suitable for high-temperature sintering, melting, and material analysis processes. As a professional lifting furnace, it boasts a high degree of automation, is easy to operate, and can meet the diverse high-temperature environment requirements of scientific research and production.

Product Features (Industrial Lifting Furnace)

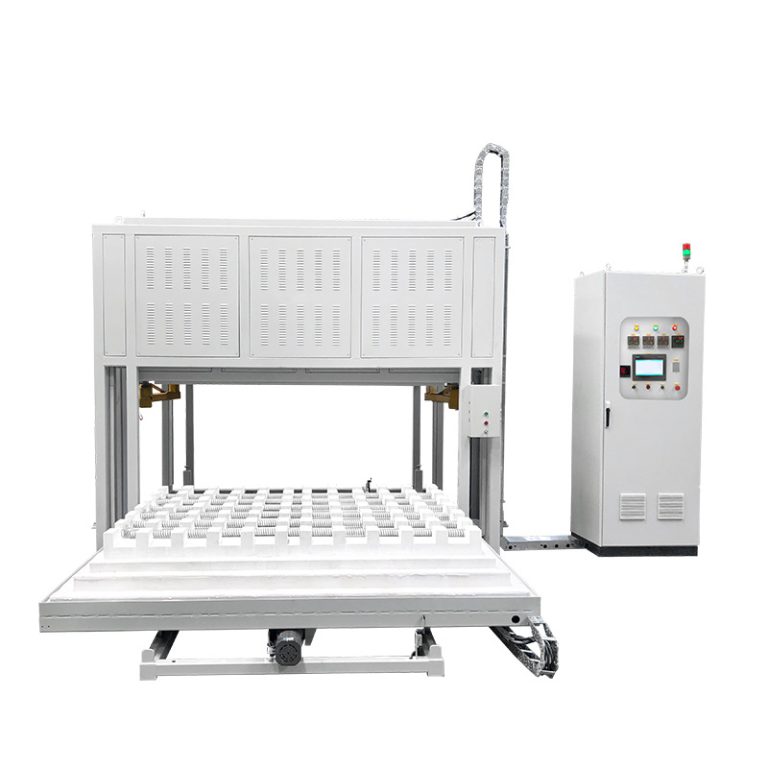

  1. Lifting Platform Structure for Convenient Loading and Unloading

The Industrial Lifting Furnace adopts a structure combining a fixed furnace body with a bottom lifting platform. Materials are placed on the lifting platform, which is electrically or hydraulically driven to rise into the furnace and descend to exit. Loading and unloading is convenient and quick.

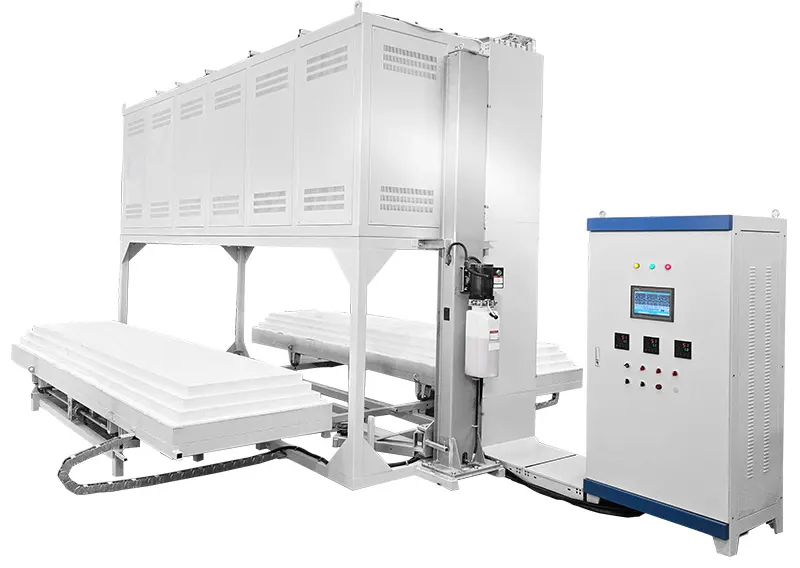

  1. Customizable Dual Furnace Platform for Continuous Production

It can be equipped with a dual-furnace platform, with two lifting platforms used alternately: one for heating inside the furnace and the other for loading and unloading outside. After the process inside the furnace is completed, the heated platform is withdrawn, and the spare platform can be immediately put in, which can significantly improve equipment utilization and production efficiency.

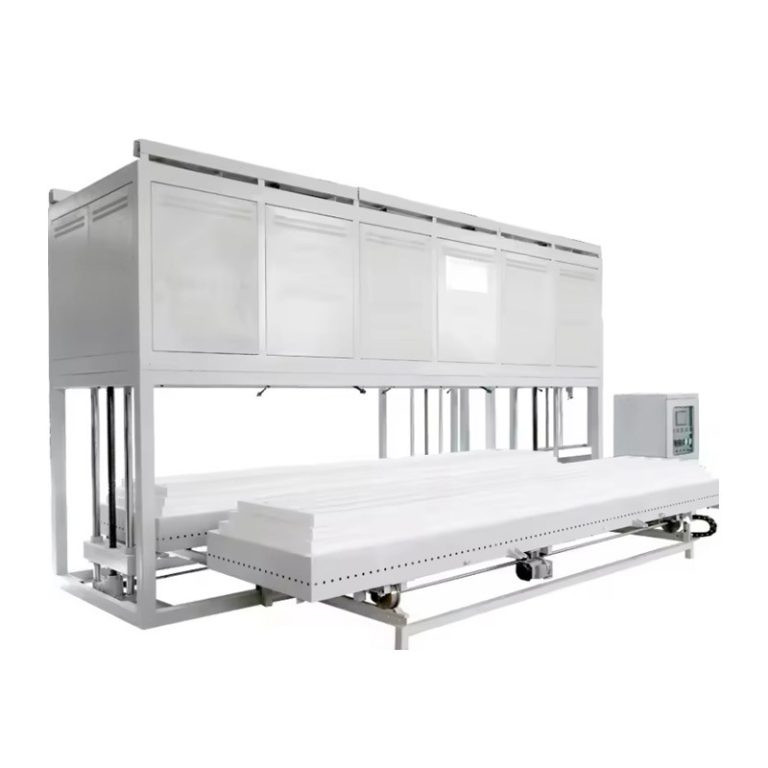

Industrial Lifting Furnace (Double Lifting Table)
  1. Multi-faceted Heating for Uniform Temperature

Heating elements are evenly distributed around the furnace perimeter and bottom, forming a multi-faceted, three-dimensional heating field, ensuring uniform temperature distribution within the furnace.

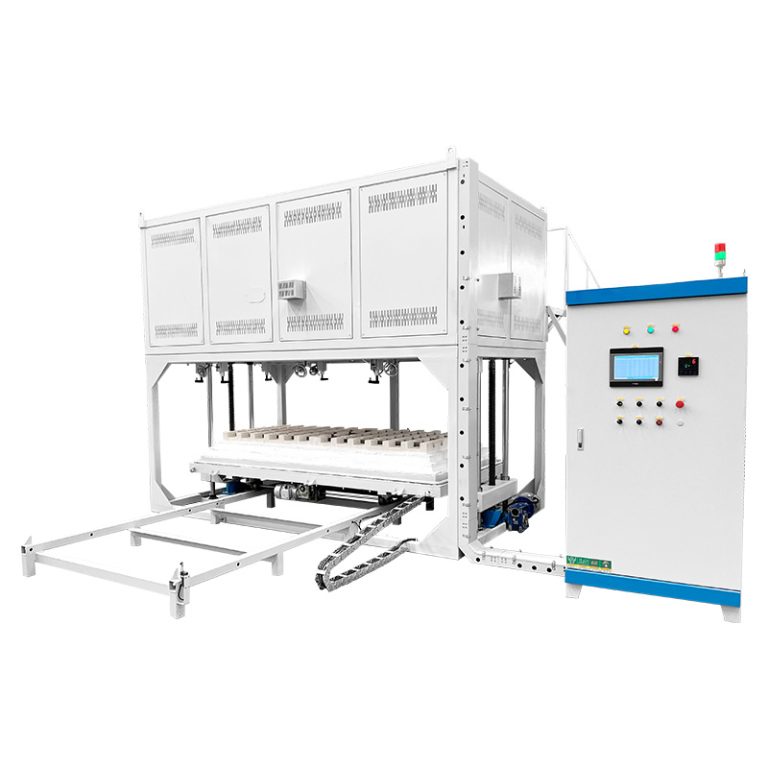

Industrial Lifting Furnace (Double Lifting Table)
  1. Intelligent Control System for Convenient Operation

The control panel is equipped with a touchscreen and an intelligent temperature regulator, integrating components such as a power switch, main heating start/stop button, voltmeter, ammeter, and computer interface, allowing for real-time monitoring of the system's operating status. The touchscreen interface is user-friendly and intuitive, and can store multiple process curves.

  1. High-quality furnace lining for excellent insulation and energy saving

The furnace lining is made of vacuum-formed high-purity alumina lightweight material, which has advantages such as high operating temperature, low heat storage, resistance to rapid heating and cooling, no cracking, no slag shedding, and good insulation performance. The multi-layer composite insulation structure provides significant energy savings.

Precautions1. In order not to affect the service life of the furnace, we recommend a heating rate of less than 15°C/min (heating too fast at high temperatures will shorten the life of the heating elements).
2. This lift furnace does not have a vacuum sealed structure, so flammable or explosive gases must not be introduced.
3. After using this lift furnace for a period of time, small cracks may appear in the chamber. This is normal and will not affect operation. The cracks can be repaired with an aluminum oxide coating.
4. It is not recommended to introduce corrosive gases. If strong corrosive gases such as S or Na must be introduced, please inform us in advance so that the chamber can be specially treated.
5. Do not allow high-temperature solutions to leak onto the furnace bottom. Preventive measures include using a backing plate or isolating with aluminum oxide powder.
6. The instrument should be placed in a well-ventilated, dry area.

Application Areas (Industrial Lifting Furnace)

  • Metallic Material Heat Treatment: Suitable for annealing, normalizing, quenching, and tempering of large metal parts, molds, and castings. The lifting platform has a strong load-bearing capacity, facilitates loading and unloading, and is suitable for large-size and heavy workpieces.
  • Advanced Ceramic Sintering: Suitable for batch sintering of high-performance ceramics such as alumina, zirconium oxide, silicon nitride, and silicon carbide. A uniform temperature field ensures consistent product density and performance. Dual furnace configuration improves production efficiency.
  • Powder Metallurgy: Suitable for sintering of iron-based and copper-based powder metallurgy products.
  • Electronic Ceramics: Suitable for debinding and sintering of electronic functional ceramics such as piezoelectric ceramics, dielectric ceramics, and PTC/NTC thermistors.
  • New Material R&D and Pilot Production: Suitable for the synthesis and heat treatment process research of new materials such as special ceramics, composite materials, and high-temperature alloys. Dual furnace configuration is suitable for small-batch continuous production.
  • Refractory Materials: Suitable for high-temperature sintering of refractory bricks and refractory products. The lifting platform has a high load-bearing capacity and is suitable for heavy workpieces.
  • Glass and Enamel: Suitable for annealing and tempering glass products, and firing processes for enamel products.

Company Profile

A professional enterprise specializing in heat treatment technology services and the R&D, manufacturing, and sales of high-temperature electric furnaces.

The company focuses on developing high-temperature electric furnaces covering a full temperature range of -100℃ to 2600℃. Its products include experimental electric furnaces, vacuum atmosphere furnaces, industrial kilns, and medium-frequency induction heating equipment. Main products include box furnaces, tube furnaces, lifting furnaces, pusher kilns, bogie furnaces, rotary kilns, tunnel kilns, and various specialized medium-frequency furnaces.

The company adheres to technological innovation and has passed ISO9001 and EU CE certifications. It owns 21 registered trademarks, 29 patents, and 27 software copyrights.

20-acre factory:We focus on providing customized heat treatment solutions for our clients.
40-acre factory:Standardized manufacturing processes shorten delivery cycles and enable faster delivery.
storage space Box Furnaces
Sheet metal workshop
Assembly workshop
Refractory workshop

Payment Methods

TT

Shipment Methods

The electric furnace is packaged in three layers: first wrapped in foam paper, then wrapped in plastic film, and finally packed in a wooden crate.

Frequently Asked Questions (FAQ)

  1. What is an industrial lifting furnace used for?

For industrial mass production. The furnace body is fixed, while the furnace bottom is raised, facilitating the loading and unloading of large or heavy workpieces.

  1. What are the advantages of a lifting furnace compared to a regular box furnace?

Samples are loaded from below, avoiding direct contact between operators and the high-temperature furnace chamber, thus reducing the risk of burns.

  1. Is the furnace shell temperature high?

No. The maximum temperature of the shell is ≤45℃, close to room temperature, providing a good working environment.

  1. Is operation complicated?

No. It features a touchscreen + intelligent temperature controller, programmable curves, fully automatic heating/cooling, and parameters can be modified during operation.

  1. Can it be customized?

Yes. Dual furnace platforms, furnace chamber size, temperature, atmosphere, etc., can all be customized.
