Enamel Frit Furnace

Enamel Frit Furnace

The Enamel Frit Furnace is a high-temperature furnace used for the preparation of glass frits and enamels. It is widely used in laboratories in the ceramics, glass, and enamel industries, and is also suitable for small-scale production.

This equipment is mainly used to prepare glass frits, low-temperature fluxes, enamel enamels, and various binders. Under high-temperature conditions, it allows for continuous operation of the feeding and melting processes and supports the immediate outflow of high-temperature liquids, improving process efficiency.

Enamel Frit Furnace Product Features

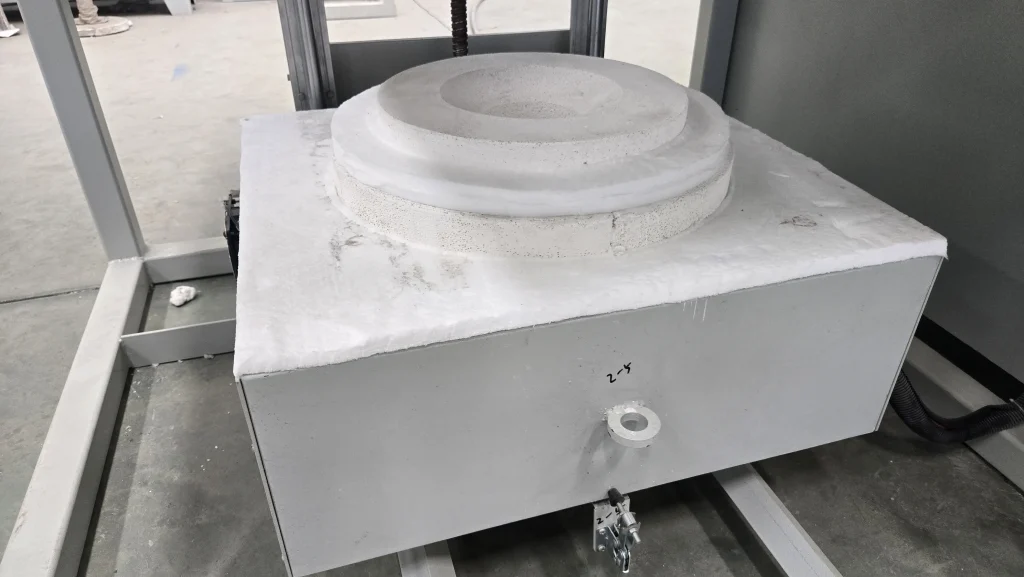

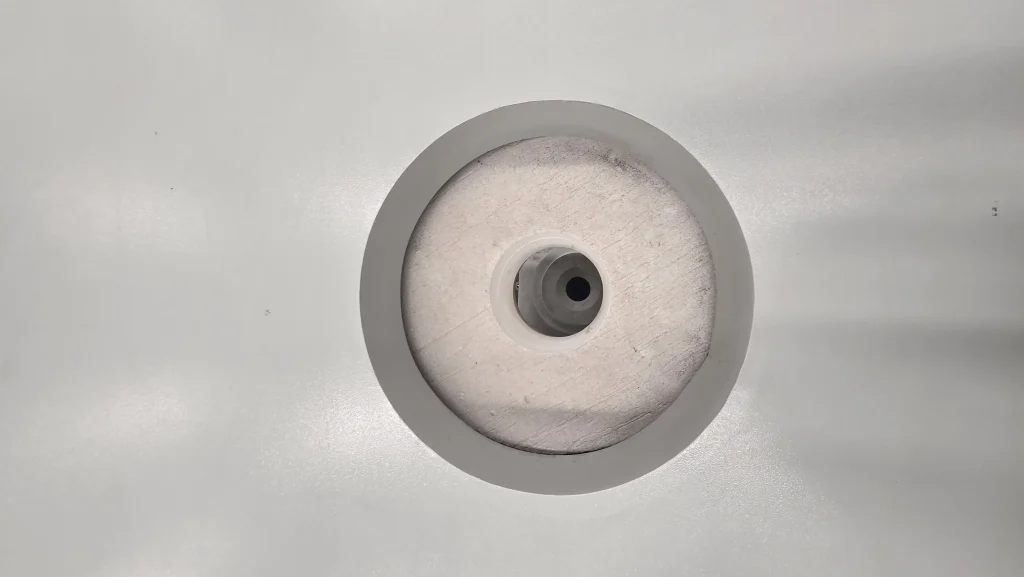

1. High-Temperature Feeding, Instant Solution Outflow

This melting furnace features high-temperature feeding, allowing users to add raw materials after the furnace reaches the set temperature, avoiding the impact of low-temperature stages on the melt composition. It also features instant high-temperature solution outflow, allowing the molten glass to flow out from the bottom or side of the furnace, enabling continuous or semi-continuous production.

2. Precise Temperature Control, Uniform Furnace Temperature

Integrated circuit control eliminates overshoot. An intelligent temperature regulator combined with microcomputer program control ensures precise and stable temperature control, meeting the stringent temperature accuracy requirements for glass and enamel enamel preparation.

3. Programmable Control, Unattended Operation

Easy to operate, programmable control with PID self-tuning, automatic heating, automatic heat preservation, and automatic cooling functions, requiring no on-site supervision.

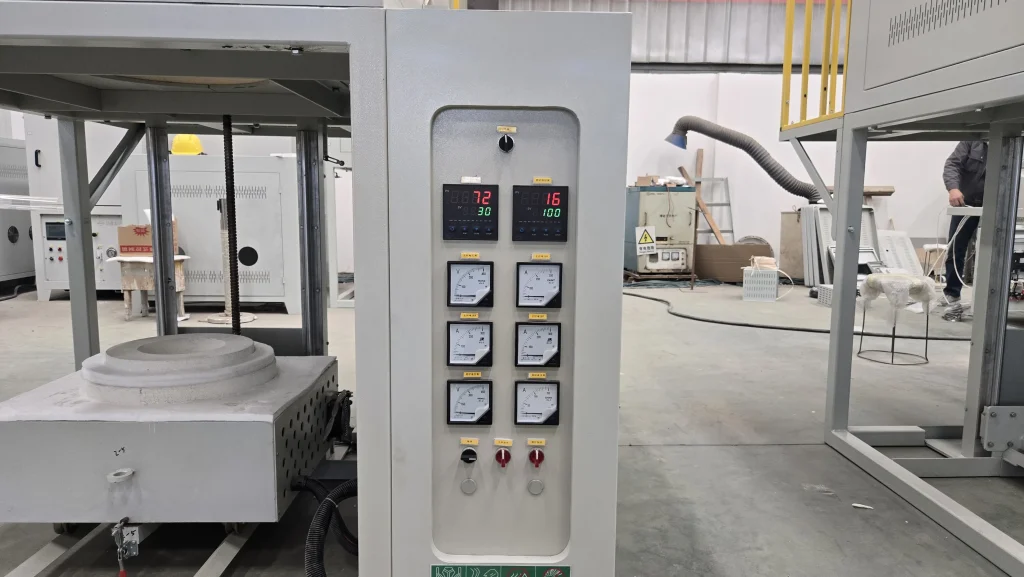

4. Computer Communication, Remote Control

Optional computer communication is available, allowing operation of the furnace via computer (starting the furnace, stopping the furnace, pausing heating, setting heating curves, storing heating curves, historical curves, etc.). Software is provided free of charge. Data traceability meets quality management requirements.

5. Wide Adjustable Heating Rate

The heating rate can be freely adjusted from 1℃/h to 40℃/min. Users can flexibly set heating curves according to the characteristics of different materials to meet diverse needs from slow to rapid heating.

5. Diverse Crucible Materials for Different Materials

High-purity zircon is available as a crucible material, which is high-temperature resistant and corrosion-resistant, suitable for melting glass and enamel glazes.

6. Customizable Configuration

Furnace size, maximum temperature, crucible material, and discharge method can be customized according to customer requirements to meet the personalized needs of different materials and processes.

Notes

1. All models listed are in stock. Special chamber sizes can be customized per customer requirements (delivery time: 7–10 days). Price adjustment: +20% for 1 custom unit, +10% for 3–5 units, no increase for 6+ units.
2. Overall dimensions are in millimeters (mm). The listed dimensions are for reference only; actual dimensions shall prevail.

Application Areas (Enamel Frit Furnace)

• Glass Fence Preparation: Suitable for melting various types of glass fence, including architectural glass, everyday glass, and specialty glass.
• Low-Temperature Glass Flux: Suitable for preparing low-temperature glass fluxes, lowering the glass melting temperature and saving energy.
• Enamel Glaze: Suitable for melting enamel glazes, including base glazes, top glazes, and colored glazes.
• Ceramic Bonding Agent: Suitable for preparing ceramic bonding agents (such as ceramic grinding wheel bonding agents). Uniform melt and stable composition ensure the bonding performance of the bonding agent.
• Small Business Production Equipment: Suitable for production equipment used by small businesses. Low investment, quick returns, suitable for small-batch, multi-variety frit production.
• New Material R&D: Suitable for melting and R&D of new materials such as specialty glass, microcrystalline glass, and glass ceramics. Customized special configurations such as platinum crucibles are available to meet the melting requirements of high-purity and highly corrosive materials.
• Universities and research institutes: Experimental teaching and research projects for majors such as Materials Science and Engineering, Inorganic Non-metallic Materials, and Glass Technology. A fully functional Enamel Frit Furnace is the core equipment for glass and enamel materials research.

Company Profile

A professional enterprise specializing in heat treatment technology services and the R&D, manufacturing, and sales of high-temperature electric furnaces.

The company focuses on developing high-temperature electric furnaces covering a full temperature range of -100℃ to 2600℃. Its products include experimental electric furnaces, vacuum atmosphere furnaces, industrial kilns, and medium-frequency induction heating equipment. Main products include box furnaces, tube furnaces, lifting furnaces, pusher kilns, bogie furnaces, rotary kilns, tunnel kilns, and various specialized medium-frequency furnaces.

The company adheres to technological innovation and has passed ISO9001 and EU CE certifications. It owns 21 registered trademarks, 29 patents, and 27 software copyrights.

Payment Methods

TT

Shipment Methods

The electric bottom-loading furnace is packaged in three layers: first wrapped in foam paper, then wrapped in plastic film, and finally packed in a wooden crate.

Enamel Frit Furnace Frequently Asked Questions (FAQ)

1. What is the frit furnace mainly used for?

Mainly used for the preparation of glass frit, glazes, and various high-temperature molten materials.

2. Can it continuously discharge at high temperatures?

High-temperature feeding is possible, and the high-temperature solution can flow out instantly, making it ideal for frit preparation processes.

3. Is the temperature control stable?

Temperature control accuracy can reach ±1℃, meeting the needs of most processes.

4. Does it support automatic operation?

Yes, it can automatically heat up, maintain the temperature, and cool down, without manual intervention.

5. Can it be connected to a computer for control?

Yes, it supports computer communication and temperature profile management functions.
