1200°C Electric Top-Opening Box Furnace
PRODUCT PARAMETERS
Description
1200℃ Electric Top-Opening Box Furnace
The electric top-opening box furnace features a top-opening structure and five-sided heating. The heating element is a high-temperature alloy resistance wire, resulting in a more uniform and stable temperature field within the furnace chamber. It supports remote control, one-button touch start, and is easy to operate with a high degree of automation.
Box Furnace Product Features

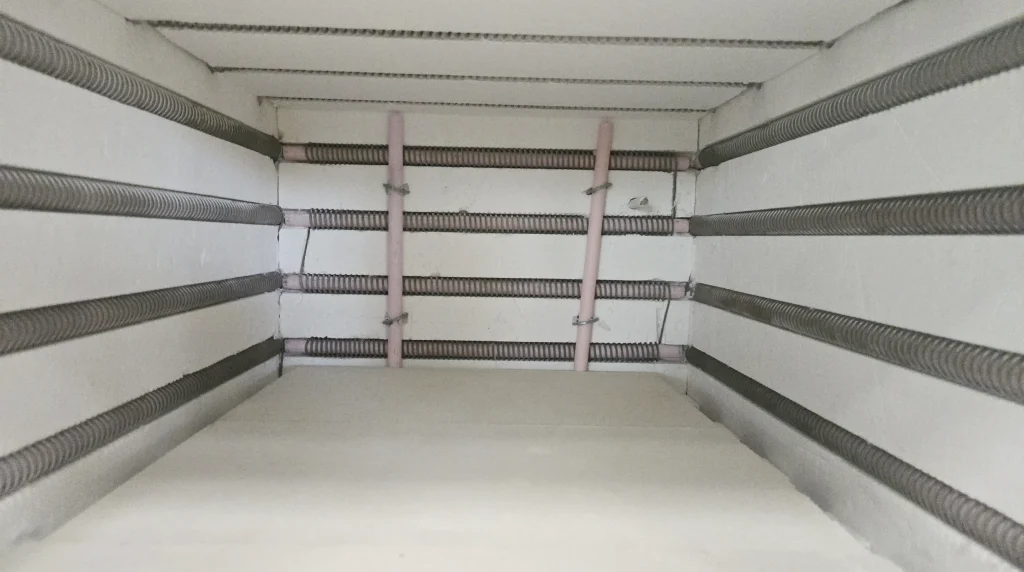

- Five-Sided Heating Structure
Utilizing top, bottom, and four-sided heating, it achieves a higher level of temperature uniformity, significantly improving workpiece processing quality.

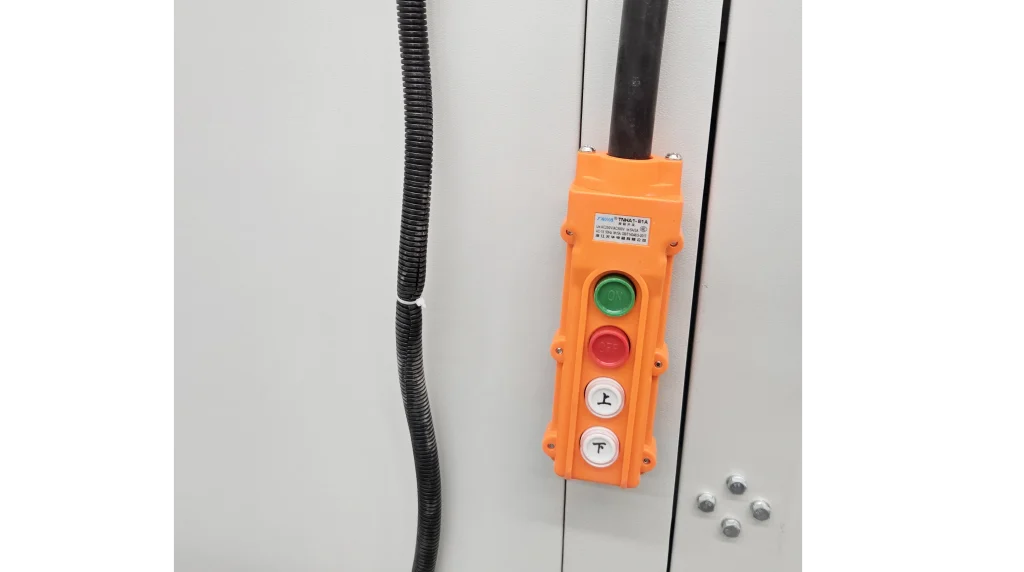

- Electric Top-Opening Door Design
The furnace door is electrically raised and lowered, making operation labor-saving and safe, suitable for industrial and laboratory environments with frequent workpiece loading and unloading.
- High-Temperature Alloy Resistance Wire Heating
High-quality heating elements ensure stable temperature rise and strong high-temperature resistance, guaranteeing long-term reliable operation.
- Intelligent Control System
Supports touchscreen operation and remote control, one-button start, simple and intuitive operation, improving work efficiency.
- Cold Air Circulation Design in the Furnace Chamber
Built-in guide baffles enable cold air circulation within the furnace body, effectively reducing the temperature of the equipment casing and optimizing the working environment.
- Compact and Efficient Furnace Chamber Design
Furnace chamber dimensions: 600 × 400 × 300 mm, suitable for processing various small and medium-sized workpieces.
Muffle Furnace Standard Model (Delivery Within 7-15 days)
| temperature | Specifications and Models L | Furnace dimensions (length, width, height) in mm | External dimensions (mm) | power kW | weight (kg) |
| 1200 degrees | AJ-XL-A-27L | 300×300×300 | L=900, W=800, H=1650 | 9 | 125 |
AJ-XL-A-30L | 500×300×200 | L=1000, W=800, H=1550 | 10 | 130 | |
AJ-XL-A-45L | 500×300×300 | L=1000, W=800, H=1650 | 12 | 140 | |
AJ-XL-A-64L | 400×400×400 | L=1100, W=900, H=1750 | 15 | 240 | |
AJ-XL-A-96L | 600×400×400 | L=1100, W=900, H=1750 | 18 | 260 | |
AJ-XL-A-125L | 500×500×500 | L=1300, W=1000, H=1849 | 20 | 300 | |
AJ-XL-A-200L | 800×500×500 | L=1300, W=1000, H=1850 | 20 | 350 | |
AJ-XL-A-216L | 600×600×600 | L=1100, W=1100, H=2000 | 26 | 400 | |
AJ-XL-A-270L | 900×600×500 | L=1400, W=1100, H=1850 | 36 | 450 | |
AJ-XL-A-288L | 800×600×600 | L=1300, W=1100, H=2000 | 40 | 480 | |
AJ-XL-A-340L | 700×700×700 | L=1600, W=1400, H=2100 | 43 | 500 | |
AJ-XL-A-360L | 1000×600×600 | L=1600, W=1300, H=2000 | 45 | 550 | |
AJ-XL-A-490L | 1000×700×700 | L=1600, W=1400, H=2100 | 65 | 650 | |
AJ-XL-A-512L | 800×800×800 | L=1800, W=1500, H=2199 | 70 | 700 | |
AJ-XL-A-768L | 1200×800×800 | L=1800, W=1500, H=2200 | 95 | 850 |
Application Areas
- Hardware Tool Heat Treatment: Suitable for quenching, annealing, and tempering processes of hardware tools such as wrenches, pliers, screwdrivers, and hammers. The five-sided heating technology of this box furnace ensures uniform hardness across all parts of the tool, extending its service life.
- Measuring Tool Heat Treatment: Suitable for stabilization treatment and quenching/tempering of precision measuring tools such as calipers, micrometers, and gauge blocks. Precise temperature control ensures dimensional stability, meeting metrological accuracy requirements.
- Bearing Heat Treatment: Suitable for quenching, tempering, and carburizing processes of bearing rings and rolling elements. A uniform temperature field ensures consistent hardness of bearing parts, improving bearing fatigue life.
- Advanced Ceramics: Suitable for sintering and heat treatment of ceramic materials such as alumina and zirconia.
- Metal Parts: Suitable for batch heat treatment of metal parts in the automotive and machinery industries.
Company Profile
A professional enterprise specializing in heat treatment technology services and the R&D, manufacturing, and sales of high-temperature electric furnaces.
The company focuses on developing high-temperature electric furnaces covering a full temperature range of -100℃ to 2600℃. Its products include experimental electric furnaces, vacuum atmosphere furnaces, industrial kilns, and medium-frequency induction heating equipment. Main products include box furnaces, tube furnaces, lifting furnaces, pusher kilns, bogie furnaces, rotary kilns, tunnel kilns, and various specialized medium-frequency furnaces.
The company adheres to technological innovation and has passed ISO9001 and EU CE certifications. It owns 21 registered trademarks, 29 patents, and 27 software copyrights.
Payment Methods
TT
Shipment Methods
The electric furnace is packaged in three layers: first wrapped in foam
Box Furnace Frequently Asked Questions (FAQ)
- What are the main advantages of this equipment?
The five-sided heating structure and electric top-opening door design ensure more uniform temperature and more efficient operation, making it a typical representative of high-performance Box Furnaces.
- Does it support automated operation?
It supports touchscreen control and remote one-button start, making operation simple and highly automated.
- What is the lifespan of the heating element?
It uses high-temperature alloy resistance wire, combined with air-cooled circulation protection, making it durable and low-replacement-cost.
- Is the outer shell temperature high?
Is it safe? The furnace chamber has built-in guide baffles to achieve cold air circulation, effectively reducing the furnace shell temperature and ensuring operational safety.
- Can it be customized?
Customization of furnace chamber size, control system, and functional configuration is supported according to requirements.
