1200°C High-Temperature Box-Type Resistance Furnace with Top-Mounted Stirring Fan
PRODUCT PARAMETERS
Description
1200°C High-Temperature Box-Type Resistance Furnace with Top Stirring Fan
The 1200°C high-temperature box-type resistance furnace (with top stirring fan) is an industrial-grade box-type electric furnace used for high-temperature heat treatment, material sintering, and experimental analysis. Based on a standard high-temperature box furnace, the addition of a top stirring fan enhances heat circulation and temperature uniformity within the furnace, resulting in a more stable internal thermal field. This makes it suitable for heat treatment processes and experimental scenarios requiring high temperature uniformity.
Box-Type Resistance Furnace Product Features

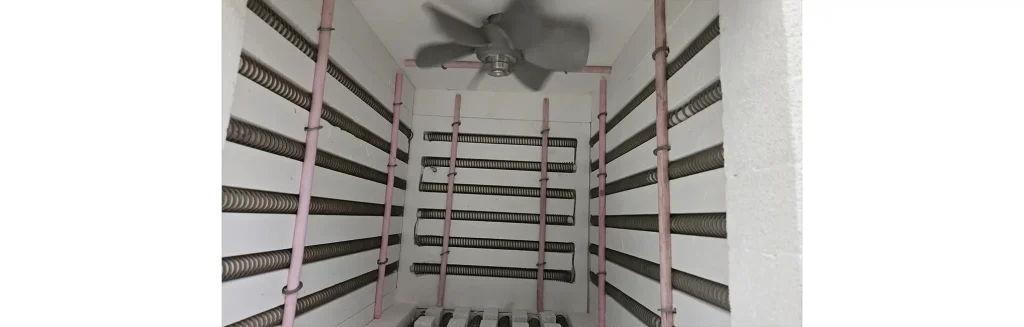

- Top-mounted stirring fan for superior furnace temperature uniformity
A stirring fan is installed at the top of the furnace to force-circulate hot air, eliminating temperature stratification and dead zones. Furnace temperature uniformity is ±5℃ (referring to HB5425-2012 standard, 5-point temperature measurement within the range of 300-1000℃, no-load measurement), meeting the stringent requirements for temperature uniformity in aerospace heat treatment specifications.
- Four-layer insulation structure for energy savings of over 80%
The furnace lining uses imported German MESCHUPP vacuum-formed high-purity alumina fiber lightweight board material. High-purity lightweight hollow spherical alumina boards are used in areas of the furnace bottom prone to material handling. The insulation material employs a four-layer structure: alumina fiber cotton, alumina fiber board, and alumina polycrystalline fiber board, all imported materials, resulting in energy savings of over 80% compared to older electric furnaces.
- Top Exhaust Port for Timely Removal of Fumes and Waste Gas
A manually operable exhaust port is located on the top of the furnace to promptly remove fumes and reaction waste gas generated during heat treatment, ensuring a clean furnace environment and protecting heating elements and samples from contamination.
- Air-Cooled Double-Layer Furnace Body with Outer Shell Temperature ≤45℃
The furnace body adopts an air-cooled double-layer structure. Even with continuous operation, the outer shell temperature remains below 45℃, ensuring safe operation and a comfortable working environment.
- Multiple Safety Protections
An integrated modular control unit is employed, featuring dual-loop control and dual-loop protection functions. It provides comprehensive protection against overshoot, over-adjustment, under-adjustment, thermocouple breakage, phase loss, over-pressure, over-current, over-temperature, current feedback, and soft start.
| Category | Parameter |
|---|---|
| Chamber Size (L×W×H) | 600×350×300mm |
| Power Supply | AC 380V |
| Maximum Temperature | 1100℃ |
| Long-term Working Temperature | 1050℃ |
| Control Range | 50 to 1270℃ |
| Temperature Measuring Element | Thermocouple Type K, range 0-1320℃ |
| Location of Heating Elements | Both sides (imported 1800-type silicon molybdenum rod heating elements) |
| Temperature Control Accuracy | ±1℃ (integrated circuit control, no overshoot) |
| Furnace Temperature Uniformity | ±5℃ (in accordance with HB5425-2012; calibration temperature range 300-1000℃, with measurement points at 300℃, 450℃, 650℃, 850℃, 1000℃, 5-point measurement, no-load condition. A qualified third-party calibration report will be provided before delivery; third-party on-site calibration at the buyer’s location, with calibration certificates for instruments and thermocouples) |
| Exhaust Port | One exhaust port on the furnace top, manually operated, for timely removal of smoke and reaction gases |
| Refractory Material | Lining made of imported German MESCHUPP vacuum-formed high-purity alumina fiber lightweight board material; easily contacted positions (furnace bottom) use high-purity lightweight hollow ball alumina plates, featuring high operating temperature, low heat storage, thermal shock resistance, no cracking, no slagging, and excellent insulation (energy saving >80% compared to traditional electric furnaces) |
| Thermal Insulation Material | Four-layer insulation: alumina fiber wool, alumina fiberboard, and polycrystalline alumina fiberboard, all imported materials; energy saving >80% compared to traditional electric furnaces |
| Furnace Shell Temperature | During long-term continuous operation, shell temperature <45℃ |
| Protection | Integrated modular control unit with high accuracy; dual-loop control and dual-loop protection designed, featuring protection against overshoot, overregulation, underregulation, thermocouple break, phase loss, overvoltage, overcurrent, overtemperature, current feedback, soft start, etc. |
| Control | Closed-loop thyristor module trigger control with phase-shift or zero-crossing triggering; continuously adjustable output voltage, current or power; features constant voltage, constant current or constant power characteristics; current loop as inner loop, voltage loop as outer loop; under sudden load or load current exceeding limit value, output current is limited within rated range to ensure normal operation of regulator and output; voltage loop also participates in regulation, limiting output current within rated range and maintaining constant output current and voltage with sufficient regulation margin, thereby protecting heating elements from excessive current and voltage surges, achieving safe, reliable control and high precision |
| Display Parameters | Temperature, temperature segment number, segment time, remaining time, output power percentage, voltage, current, etc. |
| Buttons | Imported buttons with service life >100,000 cycles and LED indicators |
| Temperature Curve Programming | Intelligent temperature controller featuring standard PID, artificial intelligence regulation APID or MPT, etc.; self-tuning and self-learning functions; excellent control characteristics with no overshoot or undershoot; 30-segment program control capability, allowing arbitrary ramp rates for heating and cooling; programmable/operable commands including jump (loop), run, pause, and stop; program can be modified at any time during operation; adopts artificial intelligence regulation algorithm with curve fitting for smooth and stable curve control |
| Multiple Curve Input | 30-segment (customizable to 50-segment) program control function; configurable as: 1 curve with 30 (50) segments, 2 curves with 14 (28) segments each, 3 curves with 9 (15) segments each, or 5 curves with 5 (9) segments each; multiple curves can be input simultaneously and called up arbitrarily during use |
| Communication Interface | RS485 communication interface with transmission distance up to 1700m; allows computer control of furnace start, pause, stop, heating curve setting, curve reading, parameter setting, etc.; high reliability and user-friendly; computer display shows measured value, setpoint, output value, segment time, segment number, heating curve, power percentage curve; heating curves can be stored on computer, and stored curves can be recalled, and setpoints and common parameters can be modified; historical curves and reports with selectable recording intervals (1s-1h) for long-term storage |
| Spare Parts Included | Two heating elements, two sets of rod holders, one furnace door insulation plug (for furnaces above 1700℃), one crucible tongs, one pair of high-temperature gloves |
Box-Type Resistance Furnace Application Areas
- Aerospace Heat Treatment: Suitable for precision heat treatment of aerospace components.
- Advanced Ceramic Sintering: Suitable for sintering advanced ceramic materials such as alumina, zirconium oxide, and silicon nitride.
- Metallic Material Heat Treatment: Suitable for heat treatment processes such as annealing, normalizing, tempering, and quenching of metallic materials.
- Powder Metallurgy: Suitable for sintering and forming powder metallurgy products.
- Universities and Research Institutes: Suitable for experimental teaching and research projects in materials science and engineering, metallurgical engineering, and related fields.
Company Profile
A professional enterprise specializing in heat treatment technology services and the R&D, manufacturing, and sales of high-temperature electric furnaces.
The company focuses on developing high-temperature electric furnaces covering a full temperature range of -100℃ to 2600℃. Its products include experimental electric furnaces, vacuum atmosphere furnaces, industrial kilns, and medium-frequency induction heating equipment. Main products include box furnaces, tube furnaces, lifting furnaces, pusher kilns, bogie furnaces, rotary kilns, tunnel kilns, and various specialized medium-frequency furnaces.
The company adheres to technological innovation and has passed ISO9001 and EU CE certifications. It owns 21 registered trademarks, 29 patents, and 27 software copyrights.
Payment Methods
TT
Shipment Methods
The electric furnace is packaged in three layers: first wrapped in foam paper, then wrapped in plastic film, and finally packed in a wooden crate.
Box-Type Resistance Furnace Frequently Asked Questions (FAQ)
- What is the function of the top stirring fan?
The top stirring fan enhances the circulation of hot air within the furnace, resulting in a more uniform temperature distribution, effectively reducing temperature differences within the furnace, and improving the consistency of heat treatment.
- What is the maximum operating temperature of this equipment? Can it operate continuously for extended periods?
The maximum operating temperature is 1100°C, and the long-term operating temperature is 1050°C. For long-term operation, it is recommended to use it within the rated long-term temperature range to extend the life of the heating elements.
- How is temperature uniformity guaranteed?
Through a combination of a two-sided silicon molybdenum rod heating structure, a top stirring fan circulation system, and multi-layer insulation materials, the furnace temperature uniformity can reach ±5°C (under standard measurement conditions).
- Does the equipment support automatic program control?
Yes. The equipment is equipped with a 30-segment (expandable to 50 segments) program control system, enabling multi-curve heating, heat preservation, and cooling, and supporting multiple modes such as run, pause, and cycle.
- Can it be remotely controlled or have data recorded?
Yes. The equipment is equipped with an RS485 communication interface, which can be remotely controlled, read data and store historical curves through a host computer, facilitating the management of production and experimental data.
