1100°C Split-Type Tube Furnace
PRODUCT PARAMETERS
Description

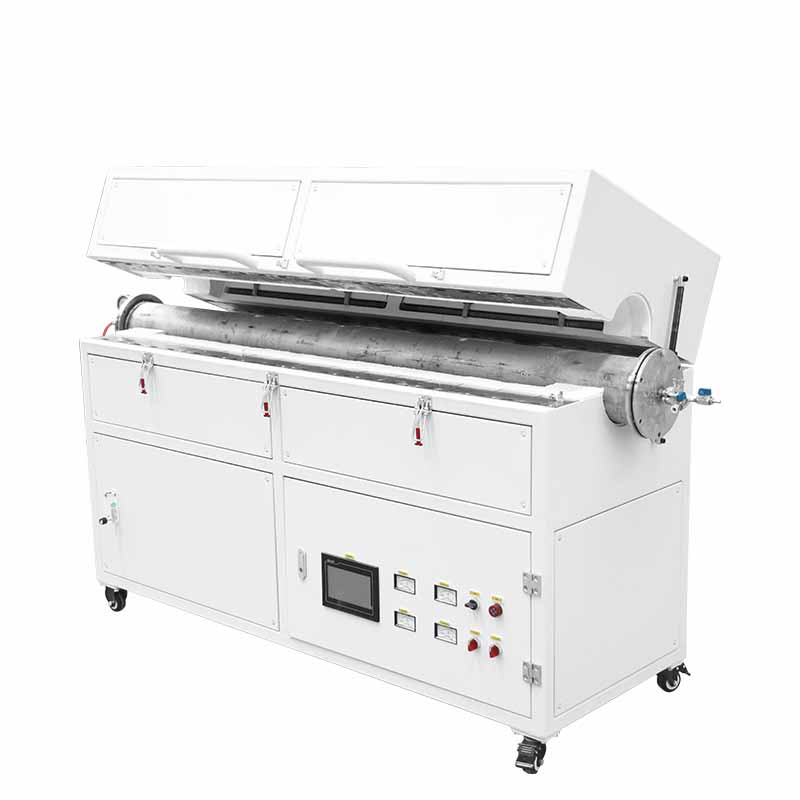

1100°C Split-Hinge Tube Furnace

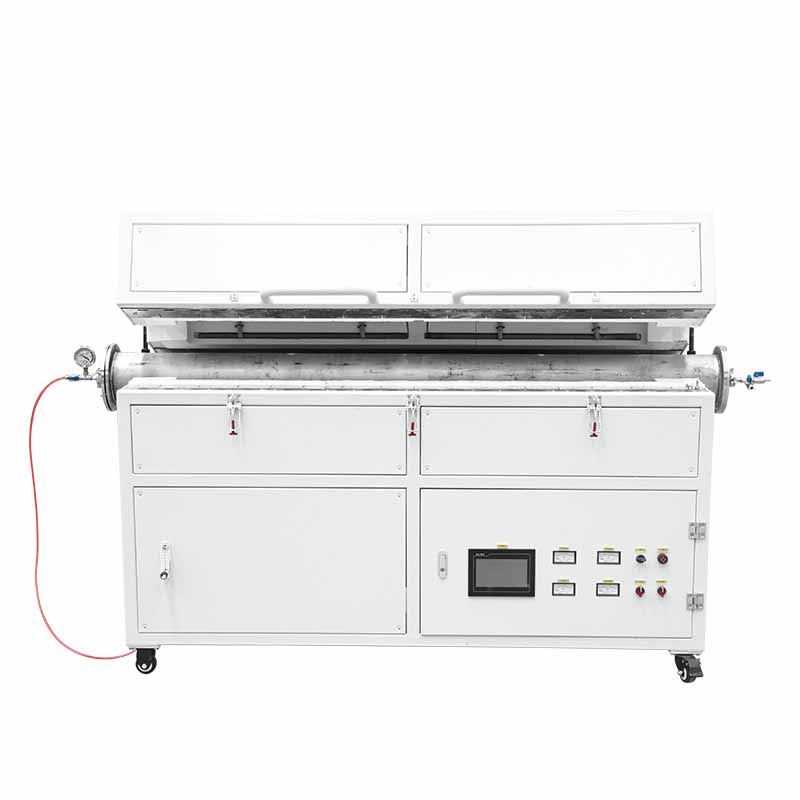

The 1100°C clamshell-style tube furnace is an electric heating unit designed for applications such as high-temperature experiments, material sintering, heat treatment, and scientific research and production. It features a clamshell-style (split-opening) furnace door design and a furnace chamber measuring 159 mm in diameter with a 1500 mm heating zone. Equipped with a 2000 mm stainless steel furnace tube, the unit offers a maximum operating temperature of 1100°C and utilizes K-type thermocouples for temperature monitoring.
The system employs dual-zone control and an intelligent temperature control system that supports 30-segment programmed heating, allowing users to customize heating, holding, and cooling curves according to specific process requirements. It utilizes integrated modular control and closed-loop SCR (Silicon Controlled Rectifier) technology, featuring dual-circuit control and protection functions; this ensures precise temperature control while effectively protecting the heating elements and ensuring the safe operation of the equipment.
Product Features
- Large-format, openable furnace tube design

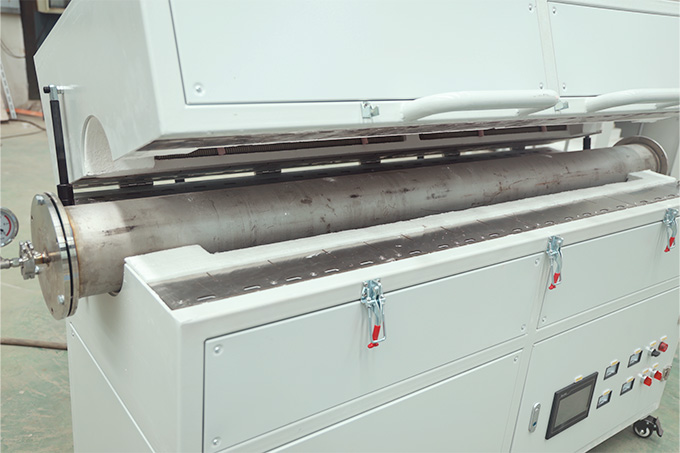

Features a stainless steel furnace tube with a diameter of 159 mm and a length of 2000 mm, offering an effective heating zone of 1500 mm; this accommodates large samples, long workpieces, and batch material processing for high-temperature experiments.

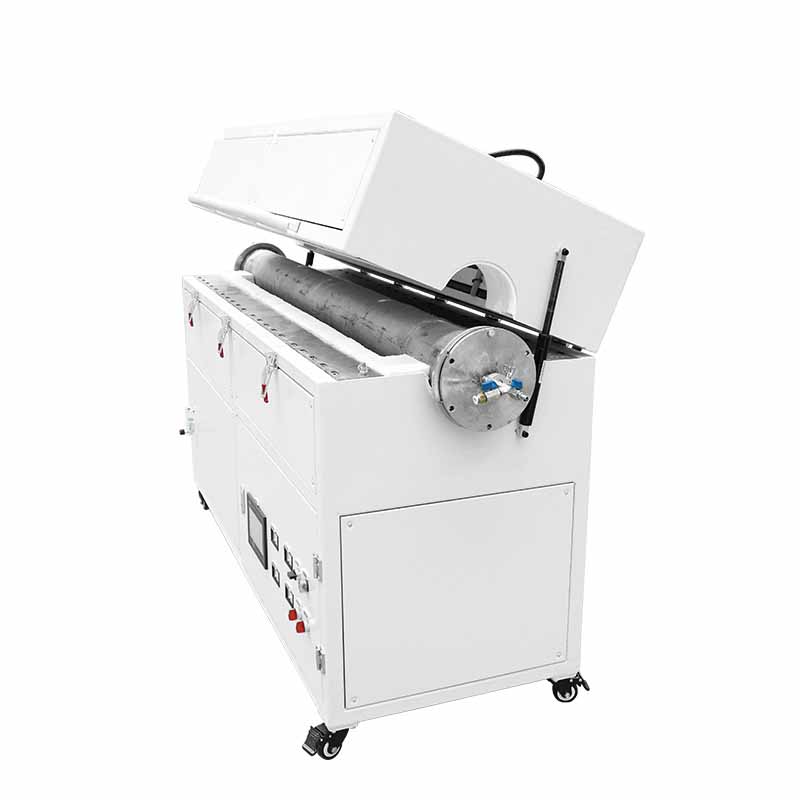

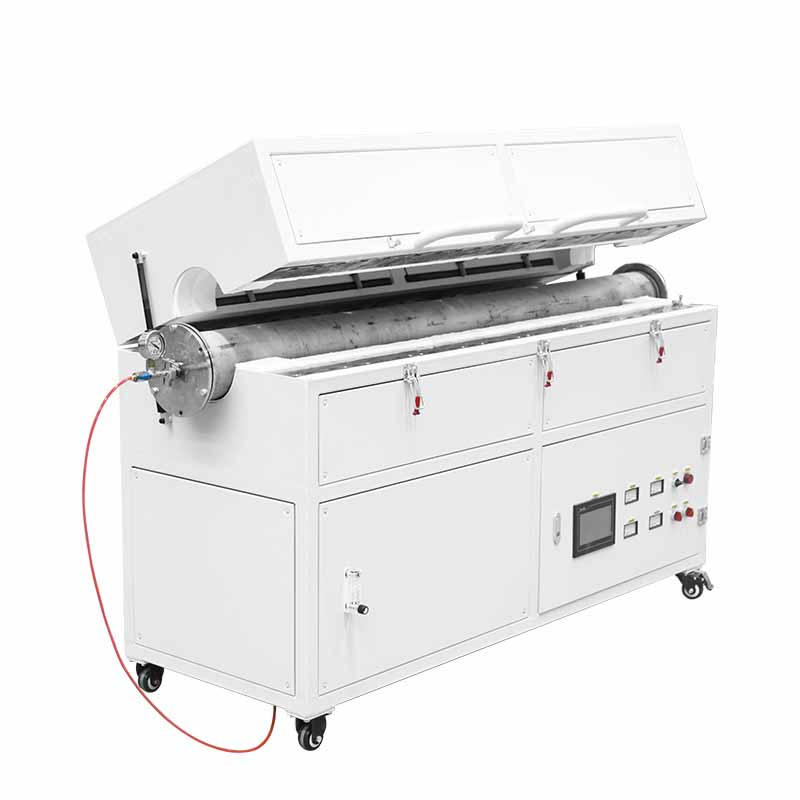

The furnace door utilizes a vertical opening design, facilitating easy sample loading/unloading and experimental operations.
- Independent dual-zone temperature control
The equipment employs a dual-zone control structure with heating elements arranged around the furnace tube, enhancing temperature distribution stability within the furnace.Temperature uniformity reaches ±1°C (actual uniformity varies based on furnace dimensions, experimental temperature, and loading conditions).
- Wide-range heating rate adjustment
Heating rates can be freely configured according to experimental protocols, ranging from a maximum of approximately 15°C/min down to a minimum of 1°C/h.
This broad control range meets diverse experimental needs, including material preheating, slow ramping, high-temperature holding, and programmed heat treatment.
- Intelligent programmable temperature control
Equipped with an intelligent temperature controller supporting multiple regulation modes—such as standard PID, AI-based APID, and MPT—along with auto-tuning, self-learning, and curve-fitting capabilities.
The system supports 30-segment program control, enabling heating and cooling at arbitrary rates, as well as functions like program jumping, looping, running, pausing, and stopping; multi-segment temperature curves can be customized to specific experimental requirements.
- Dual-layer air cooling and multi-layer insulation structure
The furnace body features a dual-layer air-cooled design; air-guiding baffles circulate cool air within the shell, effectively lowering the temperature of the furnace body and the conductive components of the heating elements.
The furnace lining utilizes vacuum-formed, high-purity, lightweight alumina insulation, combined with aluminum silicate fiber board, alumina fiber board, and polycrystalline alumina fiber board to create a three-layer insulation structure. This design offers low heat storage, resistance to thermal shock (rapid heating/cooling), crack resistance, and superior thermal insulation performance.
Under continuous long-term operation, the external furnace shell temperature is maintained below 45°C.
| Item | Specification |
|---|---|
| Model | AJ-1100KQGA |
| Max Operating Temperature | 1100℃ |
| Continuous Working Temperature | 1000℃ |
| Temperature Control Range | 80～1100℃ |
| Chamber Size | Diameter 159mm × Heating Zone Length 1500mm |
| Tube Material & Total Length | Stainless Steel Tube, 2000mm |
| Power Supply | AC380V / 22kW |
| Temperature Sensor | K-type thermocouple, measuring range 0～1320℃ |
| Heating Element Mounting Position | Around the furnace tube |
| Heating Element | Resistance wire |
| Temperature Zones | Dual temperature zone control |
| Temperature Control Accuracy | ±1℃, integrated circuit control, no overshoot |
| Furnace Temperature Uniformity | ±1℃. Multi-point control available for large chambers to improve temperature uniformity |
| Heating Rate | Adjustable: Max 15℃/min, Min 1℃/h |
| Furnace Body | CNC machined, processed by polishing, grinding, pickling, phosphating, powder coating and high-temperature baking. Two-tone appearance. Features anti-oxidation, acid & alkali resistance, corrosion resistance, high temperature resistance and easy cleaning |
| Furnace Structure | Advanced air-cooled double-layer furnace body. Built-in air guide partition enables cold air circulation to cool heating element conducting strips and prevent high-temperature oxidation. Creates a safe working environment |
| Furnace Door Opening Type | Vertical opening (up & down) |
| Refractory Material | Vacuum-formed high-purity alumina lightweight material. Light hollow ball alumina plates adopted for vulnerable positions (furnace mouth & bottom). Low heat storage, excellent thermal shock resistance, no cracking or slag falling, good thermal insulation |
| Insulation Structure | 3-layer insulation: Aluminosilicate fiber board + Alumina fiber board + Polycrystalline alumina fiber board. Energy saving over 80% compared with old-style furnaces |
| Shell Temperature | <45℃ during long-term continuous non-stop operation |
| Safety Protection | Integrated modular control unit, dual-loop control & dual-loop protection. Protection functions against overshoot, under-regulation, thermocouple breakage, phase loss, overvoltage, overcurrent, overtemperature, current feedback and soft start |
| Control System | Closed-loop SCR module trigger control, phase-shift trigger or zero-cross trigger optional. Continuously adjustable output voltage/current/power with constant voltage, constant current or constant power mode. Current inner loop + voltage outer loop. Limits output current within rated range under sudden load change, protects heating elements from current/voltage impact for reliable control and high precision |

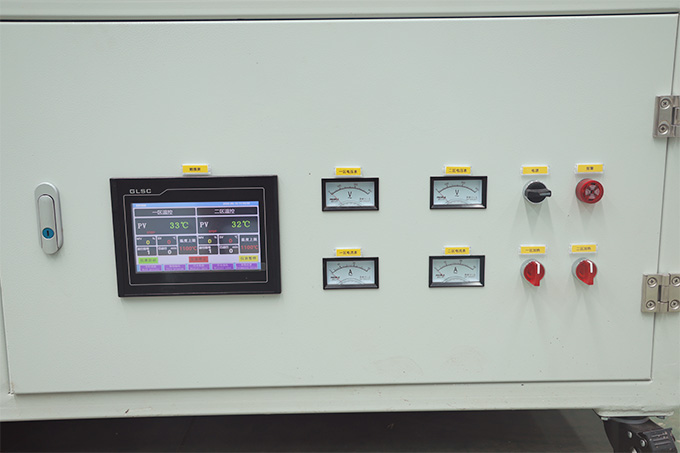

| Display Parameters | Temperature, segment number, segment time, remaining time, output power percentage, voltage, current |
| Buttons | Imported buttons, service life＞100,000 times with LED indicator lights |
| Programmable Temperature Control | Intelligent temperature controller with PID / APID / MPT artificial intelligence regulation, auto-tuning & self-learning. 30-segment program, arbitrary heating/cooling slope. Support jump/cycle, run, pause, stop; program can be modified during operation. AI algorithm with curve fitting for smooth temperature curve without overshoot or under-regulation |
| Programmable Segments | 30 segments |
| Standard Accessories | 2 pcs heating elements, 2 pcs heat insulation plugs, 1 pc crucible tongs, 1 pair high temperature gloves |
| Warranty | 1-year free warranty for the whole furnace; heating elements excluded from warranty |
Application Areas
- Materials Research: Used for high-temperature heat treatment and performance analysis of metals, non-metals, and advanced materials.
- Ceramics Industry: Used for sintering, calcination, and heat treatment experiments involving ceramic materials.
- Metallurgy Industry: Used for high-temperature processing, oxidation experiments, and material analysis of metals.
- Chemical Industry: Used for high-temperature processing of powders, inorganic materials, and chemical compounds.
- Electronic Materials: Suitable for the heat treatment of electronic ceramics, functional materials, and related electronic materials.
- Scientific Research Laboratories: Suitable for high-temperature experiments, materials R&D, and process research in universities, research institutes, and corporate laboratories.
- Heat Treatment Experiments: Suitable for experimental processes requiring slow heating, programmed heating, isothermal holding, and controlled cooling.
Company Profile
A professional enterprise specializing in heat treatment technology services and the R&D, manufacturing, and sales of high-temperature electric furnaces.
The company focuses on developing high-temperature electric furnaces covering a full temperature range of -100℃ to 2600℃. Its products include experimental electric furnaces, vacuum atmosphere furnaces, industrial kilns, and medium-frequency induction heating equipment. Main products include box furnaces, tube furnaces, lifting furnaces, pusher kilns, bogie furnaces, rotary kilns, tunnel kilns, and various specialized medium-frequency furnaces.
The company adheres to technological innovation and has passed ISO9001 and EU CE certifications. It owns 21 registered trademarks, 29 patents, and 27 software copyrights.
Payment Methods
TT
Shipment Methods
The electric furnace is packaged in three layers: first wrapped in foam paper, then wrapped in plastic film, and finally packed in a wooden crate.
Frequently Asked Questions (FAQ)
- What is the maximum temperature of the 1100°C open-type tube furnace?
The GWL-1100KQGA model has a maximum operating temperature of 1100°C, a continuous operating temperature of 1000°C, and a temperature control range of 80–1100°C.
- What are the dimensions of the furnace tube and the length of the heating zone?
The standard configuration features a stainless steel furnace tube with a diameter of 159 mm and a length of 2000 mm. The effective heating zone length is 1500 mm, making it suitable for high-temperature experiments involving larger samples and materials.
- Can the heating rate of this tube furnace be adjusted?
Yes. The heating rate can be freely set according to experimental requirements; it ranges from a maximum of approximately 15°C/min to a minimum of 1°C/h, accommodating various material heating and heat treatment processes.
- Does the tube furnace support multi-stage programmed temperature control?
Yes. The intelligent temperature control system supports control modes such as PID, APID, and MPT. It features a 30-segment program control function that allows for the setting of heating, holding, and cooling curves, as well as operations such as cycling, pausing, and stopping.
- What safety protection features does this tube furnace have?
The equipment utilizes dual-circuit control and protection. It includes safeguards against over-temperature, over-current, over-voltage, phase loss, thermocouple breakage, overshoot, and undershoot, as well as features for current feedback and soft start. Additionally, it employs closed-loop SCR (Silicon Controlled Rectifier) control technology to enhance operational stability and safety.
