Cordierite-Mullite Crucible for Ceramic Sintering and Material Processing
PRODUCT PARAMETERS
Description

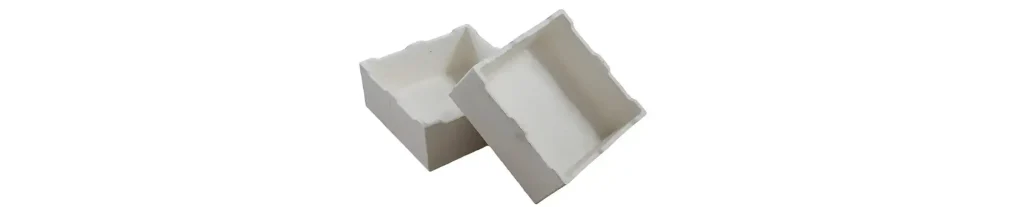

Cordierite-Mullite Crucible
Cordierite-Mullite crucibles are manufactured using high-quality industrial cordierite and mullite powders through a scientific formulation, high-pressure molding, and high-temperature sintering process. They combine the excellent thermal shock resistance of cordierite with the good high-temperature resistance and mechanical strength of mullite. The product’s bulk density is generally ≥2.0 g/cm³, and the maximum service temperature can reach 1400℃.
With its low coefficient of thermal expansion, excellent thermal stability, and good chemical corrosion resistance, it is an ideal refractory vessel for medium- and high-temperature sintering processes.
Product Features
- Composite Material, Synergistic Performance Optimization
Made using industrial cordierite powder and mullite powder through a rigorous compounding process, then calcined at high temperature. It combines the excellent thermal shock resistance of cordierite with the high-temperature strength and mechanical properties of mullite, the complementary advantages of the two materials forming an ideal composite refractory material.
- Excellent Thermal Shock Resistance
The cordierite component imparts a low coefficient of thermal expansion to the crucible, preventing cracking and peeling under frequent temperature fluctuations. This is particularly suitable for batch production processes requiring repeated rapid heating and cooling, significantly extending the crucible’s service life.
- Good High-Temperature Resistance and Mechanical Strength
The mullite component provides excellent high-temperature structural stability and mechanical strength. With a maximum operating temperature of 1400℃ and a bulk density exceeding 2.0 g/cm³, it does not deform or collapse at high temperatures, meeting the requirements for long-term high-temperature use.
- Resistance to Alkaline Corrosion
It exhibits excellent corrosion resistance in alkaline environments, making it suitable for handling alkaline fluxes and materials. It performs exceptionally well in processes such as lithium-ion battery cathode material precursor processing and alkaline glaze melting.
| Material | Max Service Temperature | Main Composition |
|---|---|---|
| High-purity quartz | 1680℃ | SiO₂ content ≥ 99% |
| Mullite (60%~70% alumina) | 1600℃ | Al₂O₃ content 60~70% SiO₂ content 30~40% |
| 99% alumina (Corundum) | 1750℃ | Al₂O₃ content ≥ 99% |
| Cordierite sagger | 1300℃ | Al₂O₃ content ~52% SiO₂ content ~40% MgO content ~8% |
| Zirconia | 2200℃ | ZrO₂ + HfO₂ content ≥ 95% |
| Corundum-mullite | 1700℃ | Al₂O₃ content 75~85% SiO₂ content 15~25% |
| Zirconia-mullite | 1600℃ | ZrO₂ content 10~40% Al₂O₃ content 45~70% SiO₂ content 10~20% |
| Magnesia-alumina (Magnesia spinel / Mag-Alumina) | 1800℃ | MgO content 3~15% Al₂O₃ content >90% SiO₂ content <5% |
| Zirconia-alumina (Zirconia-corundum) | 1800℃ | ZrO₂ content 20~40% Al₂O₃ content 60~80% |
Application Areas
- Lithium-ion Battery Cathode Material Processing: Suitable for the sintering and heat treatment processes of precursors for lithium-ion battery cathode materials (such as lithium cobalt oxide, ternary materials, and lithium iron phosphate).
- Electronic Ceramic Sintering: Suitable for the high-temperature sintering of piezoelectric ceramics, dielectric ceramics, PTC/NTC thermistors, and other electronic functional ceramics.
- Advanced Ceramic Preparation: Suitable for the synthesis and sintering processes of various advanced ceramic materials, such as structural ceramics and functional ceramics.
- Glass and Enamel Melting: Suitable for the melting processes of alkaline materials such as glass frits and enamel glazes.
- Universities and Research Institutes: Suitable for high-temperature experimental teaching and research projects in materials science and engineering, chemical engineering, and other related majors.
- Manufacturing Enterprises: Suitable for mass production in the ceramics, electronic materials, and new energy materials industries.
Company Profile
A professional enterprise specializing in heat treatment technology services and the R&D, manufacturing, and sales of high-temperature electric furnaces.
The company focuses on developing high-temperature electric furnaces covering a full temperature range of -100℃ to 2600℃. Its products include experimental electric furnaces, vacuum atmosphere furnaces, industrial kilns, and medium-frequency induction heating equipment. Main products include box furnaces, tube furnaces, lifting furnaces, pusher kilns, bogie furnaces, rotary kilns, tunnel kilns, and various specialized medium-frequency furnaces.
The company adheres to technological innovation and has passed ISO9001 and EU CE certifications. It owns 21 registered trademarks, 29 patents, and 27 software copyrights.
Payment Methods
TT
Shipment Methods
The electric furnace is packaged in three layers: first wrapped in foam paper, then wrapped in plastic film, and finally packed in a wooden crate.
Frequently Asked Questions (FAQ)
- What is the highest temperature that a cordierite-mullite crucible can withstand?
The maximum operating temperature of a cordierite-mullite crucible is 1400℃. To ensure product lifespan, prolonged operation at excessive temperatures should be avoided.
- In which industries are cordierite-mullite crucibles suitable?
These products are widely used in advanced ceramics, electronic ceramics, lithium battery cathode materials, magnetic materials, new energy materials, powder calcination, heat treatment of chemical materials, and in universities, research institutes, and testing laboratories.
- What are the advantages of cordierite-mullite crucibles?
They have a certain degree of corrosion resistance to some alkaline media; they have a long service life and are suitable for continuous high-temperature sintering processes.
- What precautions should be taken when using a cordierite-mullite crucible?
It is recommended to preheat at a low temperature before first use. During heating and cooling, avoid rapid heating and cooling. After use, allow it to cool naturally. Direct contact with cold water is not recommended to reduce thermal shock and extend the crucible’s lifespan.
5.Do you support custom sizes and specifications?
Yes, customization is supported. We can customize different sizes, capacities, wall thicknesses, shapes, and special structures based on drawings, samples, or technical parameters provided by customers.
