600°C High-Temperature Drying Oven
PRODUCT PARAMETERS
Description

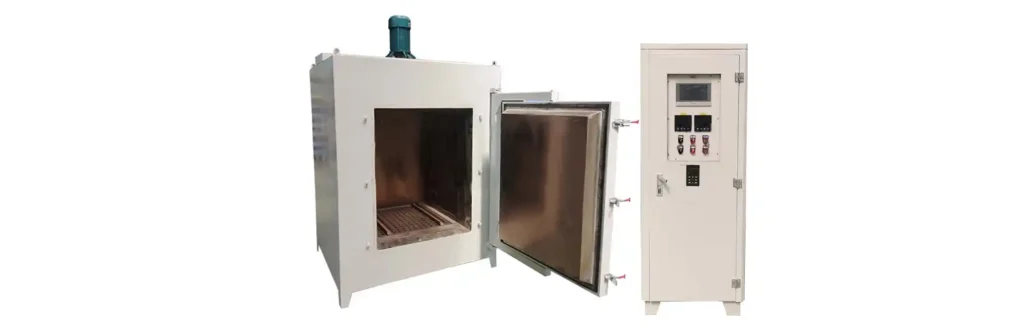

600°C High-Temperature Industrial Drying Oven
This 600°C high-temperature industrial oven features a three-sided heating structure utilizing high-temperature alloy resistance wires. Combined with an efficient thermal insulation system and intelligent programmable temperature control technology, it ensures rapid heating, uniform temperature distribution, and stable operation. The inner chamber is constructed from a double-layer SUS304 stainless steel structure, offering excellent corrosion resistance and a long service life.
Product Features
- Double-Layer SUS304 Stainless Steel Inner Chamber: Clean and Durable
The inner chamber of this equipment features a double-layer SUS304 stainless steel structure, offering excellent corrosion resistance, oxidation resistance, and ease of cleaning; it is particularly well-suited for drying materials with strict cleanliness requirements.
- Three-Sided Heating: Uniform Temperature Field
The heating elements consist of high-temperature alloy resistance wires, uniformly distributed across the sides and bottom of the furnace chamber to create a three-dimensional heating field, thereby ensuring temperature uniformity.
- Large-Capacity Chamber: Ideal for Batch Processing
The furnace chamber measures 800 mm (depth) × 800 mm (width) × 1030 mm (height). Its substantial volume makes it suitable for the drying, curing, and heat treatment of medium-batch quantities of materials. Optional guide rails can be installed within the chamber (platforms or racks must be purchased separately) to facilitate the loading and unloading of material racks or trays.
- High-Purity Ceramic Fiber Insulation: Energy-Efficient and High-Performance
The refractory and thermal insulation components of this equipment utilize multi-layer ceramic fiber boards, characterized by high purity, light weight, and energy efficiency, making them suitable for high-temperature operating environments. This material features low heat capacity, strong resistance to rapid thermal shock, and superior thermal insulation performance.
| Maximum operating temperature | 600℃ |
| Continuous operating temperature | ≤ 600℃ |
| Power supply / rated power | 380V / 30 kW |
| Chamber dimensions (D×W×H) | 800 × 800 × 1030 mm |
| Control cabinet | 1 unit |
| Temperature sensor | Type K thermocouple |
| Heating element | High-temperature alloy resistance wire |
| Heating element arrangement | Three-side heating: both sides + bottom |
| Temperature control accuracy | ±1℃ |
| Temperature control points | 1 point |
| Inner liner material | Double-layer SUS304 stainless steel |
| Rail / slide | Internal slide rail (platform not included) |
| Furnace temperature uniformity | ±5℃ (depends on chamber size) |
| Heating / ramp rate | Adjustable from 1℃/h to 20℃/min |
| Temperature profile programming | 30-segment programmable profile |
| Refractory & insulation material | High-temperature, high-purity, energy-saving, lightweight multi-layer ceramic fiber board |
| Outer shell temperature (continuous use) | <45℃ under long-term continuous operation |
| Door operation | Side-hinged door |
| Furnace body finishing | CNC machined, polished, ground, pickled, phosphated, powder-coated, and baked at high temperature |
Application Fields
- Electronic Component Drying: This equipment is suitable for the drying and curing processes of functional electronic materials, such as electronic components, magnetic materials, and piezoelectric ceramics.
- Chemical Raw Material Drying: Suitable for the drying and thermal treatment of chemical raw materials, catalysts, molecular sieves, and similar materials. The double-layer stainless steel inner chamber offers corrosion resistance, making it ideal for processing corrosive substances.
- Powder Material Processing: Suitable for the drying and preheating of various powder materials (including ceramic powders, metal powders, etc.). The large-capacity chamber is well-suited for batch production.
- Metal Component Hydrogen Removal: This equipment is suitable for processes such as dehydrogenation treatment and stress-relief annealing of metal components.
- Food and Pharmaceutical Drying: Suitable for the low-temperature drying and sterilization of food ingredients, pharmaceuticals, traditional Chinese medicinal herbs, and similar materials. The stainless steel inner chamber meets stringent sanitary-grade requirements.
- Universities and Research Institutes: This equipment is suitable for experimental instruction and small-scale pilot production in disciplines such as materials science and chemical engineering.
Company Profile
A professional enterprise specializing in heat treatment technology services and the R&D, manufacturing, and sales of high-temperature electric furnaces.
The company focuses on developing high-temperature electric furnaces covering a full temperature range of -100℃ to 2600℃. Its products include experimental electric furnaces, vacuum atmosphere furnaces, industrial kilns, and medium-frequency induction heating equipment. Main products include box furnaces, tube furnaces, lifting furnaces, pusher kilns, bogie furnaces, rotary kilns, tunnel kilns, and various specialized medium-frequency furnaces.
The company adheres to technological innovation and has passed ISO9001 and EU CE certifications. It owns 21 registered trademarks, 29 patents, and 27 software copyrights.
Payment Methods
TT
Shipment Methods
The electric furnace is packaged in three layers: first wrapped in foam paper, then wrapped in plastic film, and finally packed in a wooden crate.
Frequently Asked Questions (FAQ)
- What is the maximum operating temperature?
The maximum operating temperature is 600°C; for long-term operation, it is recommended that the temperature does not exceed 600°C.
- What is the temperature control accuracy?
Utilizing an intelligent PID control system, the temperature control accuracy can reach ±1°C.
- Does it support automatic programmable temperature control?
It supports 30-segment programmable temperature control, enabling automated heating, holding, and cooling cycles.
- What is the temperature uniformity inside the furnace?
With the standard configuration, the temperature uniformity can reach ±5°C, meeting the requirements of most industrial drying processes.
- Can the dimensions be customized?
We offer customization options based on customer requirements, including furnace chamber dimensions, power configuration, control systems, and specialized structural designs.
