900°C Box-Type Resistance Furnace XL (Top Exhaust Gas Purification Device)
PRODUCT PARAMETERS
Description

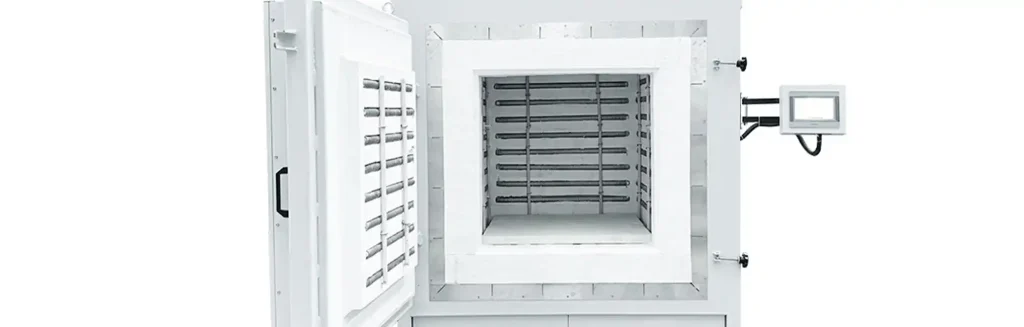

900°C Box-Type Resistance Furnace XL (Top-mounted Exhaust Gas Purification Device)
The box-type resistance furnace is a high-temperature electric furnace that integrates heat treatment and exhaust gas purification. The equipment adopts a three-zone independent heating design, with high-temperature alloy resistance wires evenly distributed around the furnace chamber and at the bottom. Combined with a top-mounted stirring fan circulation system, this effectively improves the temperature uniformity within the furnace. An exhaust gas purification device is installed at the top of the furnace, using high-temperature oxidation decomposition technology to convert VOCs (volatile organic compounds) into carbon dioxide and water, significantly reducing the environmental impact of exhaust gas emissions.
Product Features
- Top-mounted exhaust gas purification device for high VOC treatment efficiency
The furnace is equipped with an exhaust gas purification device at the top, heating organic waste gas to over 760℃, oxidizing and decomposing VOCs in the waste gas into carbon dioxide and water, achieving clean emissions. This effectively solves the problem of organic waste gas pollution generated during the heating process of samples containing binders, meeting environmental protection requirements.
- Three-zone independent temperature control for excellent temperature uniformity
It features three independent temperature zones: bottom + front + back + left and right, and a three-dimensional heating layout around the perimeter and bottom. Furnace temperature uniformity is ±5℃, and temperature control accuracy is ±1℃, ensuring uniform temperature distribution within the large 850×750×750mm furnace.
- Stirring fan + frequency converter + water cooling
A top-mounted stirring fan, combined with a frequency converter to control its speed, and water cooling to protect the fan motor, forces the circulation of hot air within the furnace, eliminating temperature stratification and dead zones, further improving temperature uniformity.
- Bottom-mounted rapid cooling
Equipped with a 60W blower at the bottom, operating at full power below 520℃, and every 30 seconds for temperatures above 520℃, continuing at full power after the heat preservation period. This accelerates furnace cooling, shortens the process cycle, and improves equipment utilization.
- 50-segment programmable temperature control, 7-inch touchscreen operation
Features 50-segment programmable temperature control, allowing input and setting of multiple temperature rise curves (single 50-segment/two 28-segment/three 15-segment/five 9-segment), which can be recalled at any time. The 7-inch touchscreen features a Chinese menu and can store multiple process curves, historical curves, and data reports, providing intuitive and convenient operation.
| Maximum Temperature | 900℃ |
| Long-term Working Temperature | 850℃ |
| Chamber Size (L×W×H) | 850×750×750mm |
| Temperature Control Range | 100-900℃ |
| Temperature Control Accuracy | ±1℃ |
| Furnace Temperature Uniformity | ±5℃ |
| Temperature Measuring Element | Type K Thermocouple |
| Heating Element Material | High-temperature alloy resistance wire (fixed at both ends) |
| Location of Heating Elements | Surrounding walls + bottom |
| Temperature Zones | 3 zones: bottom + front/rear + left/right |
| Heating Rate | Max. 20℃/min (non-linear) |
| Furnace Structure and Material | Air-cooled double-layer carbon steel furnace structure; effective air-cooled guide partitions enable cold air circulation throughout the furnace shell, cooling the heating element conductive plates before exhausting, preventing high-temperature oxidation of conductive plates and ensuring a good working environment |
| Door Opening Method | Axial 180° side-opening door; door locking mechanism located on the side with elastic lock for effective sealing; the elastic lock absorbs thermal expansion of refractory materials, allowing free expansion and contraction while maintaining effective sealing |
| Refractory and Insulation Material | Lining made of vacuum-formed high-purity alumina lightweight material, featuring high operating temperature, low heat storage, thermal shock resistance, no cracking, no slagging, and excellent thermal insulation |
| Fan | Stirring fan + frequency converter + water cooling |
| Air Intake | Blower fan (60W) installed at the bottom; below 520℃, blower runs continuously; above 520℃, runs for 30 seconds every 10 minutes; runs continuously after soaking/insulation phase |
| Touchscreen | 7-inch with Chinese menu, multiple heating curve storage, historical curve and data report storage |
| Exhaust Gas Purification | Organic waste gas heated to above 760℃ (depending on composition) to oxidize and decompose VOCs into CO₂ and H₂O |
| Quartz Tube Inside Chamber | Two ends: 50mm diameter, middle: 150mm diameter; heating height: 600mm |
| Furnace Shell Temperature | Shell temperature < ambient temperature +20℃ |
| Safety Protection | Integrated modular control unit with high accuracy; dual-loop control and dual-loop protection designed, featuring protection against overshoot, overregulation, underregulation, thermocouple break, phase loss, overvoltage, overcurrent, overtemperature, current feedback, soft start, etc. |
| Door Interlock / Power Cut-off | Furnace designed with function to disconnect main heating circuit when door is opened under high-temperature operating conditions, significantly reducing electric shock risk during hot material retrieval |
| Safety Temperature Control | Closed-loop thyristor module trigger control with phase-shift or zero-crossing triggering; continuously adjustable output voltage, current or power; features constant voltage, constant current or constant power characteristics; current loop as inner loop, voltage loop as outer loop; under sudden load or load current exceeding limit value, output current is limited within rated range to ensure normal operation of regulator and output; voltage loop also participates in regulation, limiting output current within rated range and maintaining constant output current and voltage with sufficient regulation margin, thereby protecting heating elements from excessive current and voltage surges, achieving safe, reliable control and high precision |
| Temperature Curve Programming | Intelligent temperature controller featuring standard PID, artificial intelligence regulation APID or MPT, etc.; self-tuning and self-learning functions; excellent control characteristics with no overshoot or undershoot; 30-segment program control capability, allowing arbitrary ramp rates for heating and cooling; programmable/operable commands including jump (loop), run, pause, and stop; program can be modified at any time during operation; adopts artificial intelligence regulation algorithm with curve fitting for smooth and stable curve control |
| Heating Curve Segments | 50-segment program control function; configurable as: 1 curve with 50 segments, 2 curves with 28 segments each, 3 curves with 15 segments each, or 5 curves with 9 segments each; multiple curves can be input simultaneously and called up arbitrarily during use |
| Panel Buttons | Two buttons/knobs: Main power, Heating chamber activation |
| Spare Parts Included | One crucible tongs, one pair of high-temperature gloves, one furnace bottom base plate |
