Electric Furnace Atmosphere Control and Analysis System
PRODUCT PARAMETERS
Description

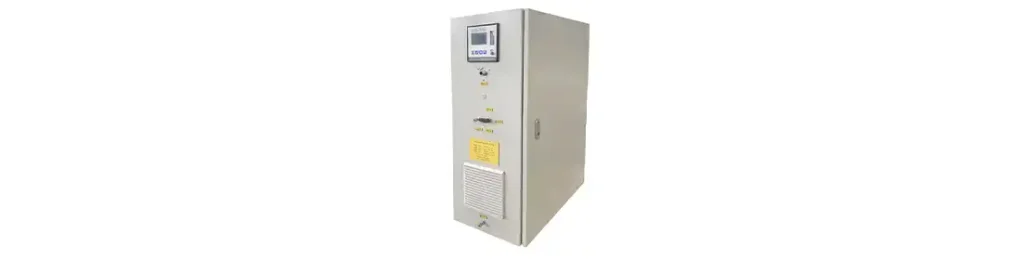

Electric Furnace Atmosphere Treatment and Analysis System
The Electric Furnace Atmosphere Treatment and Analysis System is an online atmosphere detection and analysis system specifically developed for high-temperature electric furnaces, atmosphere furnaces, sintering furnaces, heat treatment furnaces, and other similar equipment. The system uses high-precision gas detection sensors to monitor the oxygen concentration and related atmosphere parameters in the exhaust gas from the furnace or furnace tail in real time, enabling atmosphere control, data recording, anomaly alarms, and remote communication management during the production process.
It adopts an imported electrochemical oxygen sensor and microprocessor control, and has the functions of digital display, upper and lower limit alarm, signal output, relay alarm, data storage and trend curve display.
Product Features
- Imported High-Performance Electrochemical Sensor: High Accuracy and Long Lifespan
It uses an imported high-performance electrochemical gas sensor, combined with microprocessor technology, to continuously monitor oxygen concentration. The measurement range is selectable 0-25%, 0-50%, 0-100% O₂, with a resolution of 0.01%, linearity error ±1.5%FS, zero drift ±1.5%FS/7d, and repeatability error ±1%FS.
- Large-Screen LCD with Full Chinese User Interface
Large-screen LCD display with a full Chinese menu and real-time clock. The user-friendly interface is simple and intuitive, facilitating quick on-site setup and data retrieval.
- Paperless Recorder Function for Traceable Data Storage
It features a timed automatic data saving function, allowing you to view the saved data at any time. The paperless recording function automatically records changes in oxygen concentration over time, facilitating process analysis and quality traceability. It can also be connected to a printer for timed automatic printing, meeting the needs of data recording and archiving.
- RS232 Communication, Supporting Real-Time Data Transmission
It has an RS232 communication port, which can be connected to a computer to realize real-time data transmission, storage, trend chart drawing and report printing.
- Upper and Lower Limit Alarm Output, Real-Time Warning
Allows the setting of upper and lower limit alarm points with alarm contact output. An automatic alarm is triggered when the oxygen concentration exceeds the set range, alerting operators to adjust the atmosphere and ensure process quality. Standard signal output is selectable between 0-10mA and 4-20mA.
- Online Calibration, Convenient Maintenance
It can be calibrated online using standard gas without disassembling the sensor, making maintenance convenient and quick. Sample gas flow rate is 300 ml/min, inlet temperature is 0-40℃, and inlet pressure is <0.2 MPa.
| Item | Specification |
|---|---|
| Measuring range | 0~25%, 0~50%, 0~100% O₂ |
| Linearity error | ±1.5% FS |
| Zero drift | ±1.5% FS / 7d |
| Span drift | ±1.5% FS / 7d |
| Repeatability error | ±1% FS |
| Resolution | 0.01% |
| Response time | T90 < 40s |
| Output signal | 0~10mA, 4~20mA |
| Power supply | 220VAC ±10%，50Hz ±1Hz |
| Ambient temperature | 0~40℃ |
| Sample gas flow | 300 ml/min |
| Inlet gas temperature | 0~40℃ |
| Inlet gas pressure | < 0.2MPa |
Application Areas
- Electric Furnace Exhaust Gas Monitoring: Used for continuous monitoring of oxygen content in exhaust gases from industrial kilns such as high-temperature electric furnaces, heat treatment furnaces, and sintering furnaces, ensuring combustion efficiency and emission compliance.
- Protective Atmosphere Monitoring: Used for monitoring residual oxygen content in protective atmospheres such as nitrogen, hydrogen, and argon, ensuring that oxygen content in processes such as metal heat treatment and ceramic sintering remains within safe ranges.
- Vacuum Furnace Atmosphere Analysis: Used for monitoring oxygen content in the backfill atmosphere of vacuum furnaces, ensuring that the atmosphere inside the vacuum furnace meets process requirements.
- Heat Treatment Process Control: Used for real-time monitoring and control of oxygen potential inside the furnace during metal heat treatment, preventing metal oxidation and decarburization.
- Research Laboratories: Used for oxygen content analysis in high-temperature experimental atmospheres in materials science, chemical engineering, and other related fields.
- Chemical and Electronic Industries: Used in chemical reactions, electronic component production, and other processes requiring precise oxygen content control.
Company Profile
A professional enterprise specializing in heat treatment technology services and the R&D, manufacturing, and sales of high-temperature electric furnaces.
The company focuses on developing high-temperature electric furnaces covering a full temperature range of -100℃ to 2600℃. Its products include experimental electric furnaces, vacuum atmosphere furnaces, industrial kilns, and medium-frequency induction heating equipment. Main products include box furnaces, tube furnaces, lifting furnaces, pusher kilns, bogie furnaces, rotary kilns, tunnel kilns, and various specialized medium-frequency furnaces.
The company adheres to technological innovation and has passed ISO9001 and EU CE certifications. It owns 21 registered trademarks, 29 patents, and 27 software copyrights.
Payment Methods
TT
Shipment Methods
The electric furnace is packaged in thThe electric furnace is packaged in three layers: first wrapped in foam paper, then wrapped in plastic film, and finally packed in a wooden crate.
Frequently Asked Questions (FAQ)
- What gases can this oxygen analyzer detect oxygen content in?
The equipment can be used for continuous detection of oxygen concentration in various atmospheres, including air, nitrogen, hydrogen, and argon.
- What is the measurement range of the oxygen analyzer?
The equipment offers multiple range options, including: 0–25% O₂, 0–50% O₂, and 0–100% O₂. Users can select the appropriate range according to their actual process requirements.
- Does the equipment support data logging and computer connection?
Yes. The instrument is equipped with an RS232 communication interface, which can be connected to a computer to achieve real-time data transmission, data storage, trend curve display, and report printing.
- How is the oxygen analyzer calibrated?
The equipment supports online calibration with standard gas. Calibration can be performed using standard oxygen concentration gases to improve detection accuracy.
- What industrial equipment is this system suitable for?
It is suitable for equipment such as electric furnaces, atmosphere furnaces, heat treatment furnaces, sintering furnaces, and vacuum furnaces that require real-time monitoring of oxygen concentration, and can be used for production process control and experimental data analysis.
