Square Cooling Tower Medium Frequency Furnace
PRODUCT PARAMETERS
Description

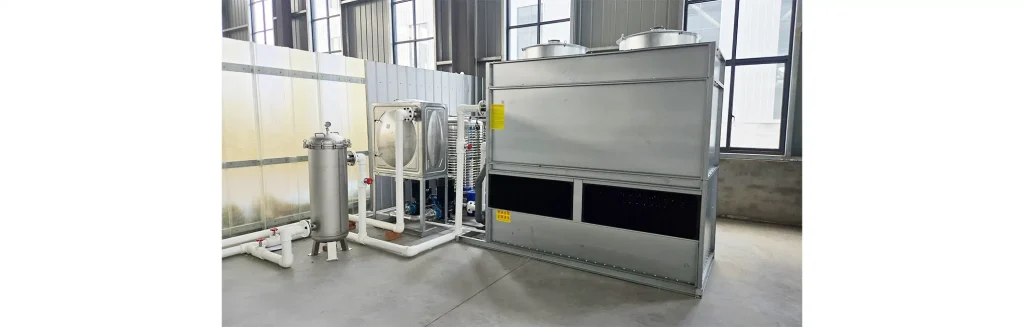

Square Cooling Towers
Square Cooling tower are heat exchange devices used in industrial circulating cooling systems, widely applied in medium-frequency induction melting furnaces, induction heating furnaces, quenching furnaces, induction heating equipment, and other industrial cooling systems. The equipment exchanges heat between circulating water and air, rapidly dissipating the heat generated during production, thus ensuring long-term stable operation of the equipment.
This series of cooling towers features high cooling efficiency, stable circulating water quality, strong heat dissipation capacity, reliable operation, and convenient maintenance, making them particularly suitable for use with medium to large-sized induction heating equipment.
Product Features
- High-Efficiency Heat Dissipation
Utilizing a closed-loop cooling tower design, combining external water spraying with forced ventilation via a partitioned heat exchanger, it achieves high heat exchange efficiency and excellent heat dissipation, suitable for large-tonnage cooling needs.
- Dual Circulation System
Internal Circulation: Connects to the induction heating equipment to form a closed-loop circulation system (soft water as the circulating medium), carrying heat from the equipment to the cooling unit.
External Circulation: Heat dissipation is achieved through forced convection between sprayed water and air. The internal and external circulations do not directly contact each other; heat exchange occurs only through a copper tube surface cooler, ensuring the cleanliness of the circulating water.
- Reduced Impurities in Circulating Water
The closed-loop internal circulation design effectively isolates external impurities, reducing scale and contaminant formation and extending the service life of the equipment and cooling system.
- Large-Tonnage Cooling Capacity
With a rational structural design and large heat dissipation capacity, it can meet the cooling needs of various medium- and high-frequency induction heating equipment such as induction furnaces, quenching furnaces, and smelting furnaces.
- Stable and Durable, Intelligent Temperature Control Operation
Made with high-quality materials, it boasts stable and reliable performance, allowing for long-term continuous operation and adaptability to harsh industrial environments. Equipped with an automatic control system, it adjusts the motor’s operating status in real time based on water temperature, achieving energy saving, consumption reduction, and precise temperature control.
| Item | Detailed Description |
|---|---|
| Equipment Name | Square Closed-Circuit Cooling Tower (Square Cooling Water Tower) |
| Primary Applications | Circulating water cooling for induction heating equipment, such as through-heating furnaces, quenching furnaces, and melting furnaces. |
| Key Advantages | 1. High heat dissipation efficiency 2. Reduced impurities in circulating water (closed-loop system ensures clean water quality) 3. Supports large-tonnage cooling capacity 4. Stable performance and durable construction |
| Cooling Principle Overview | Utilizes indirect heat exchange + spray evaporative cooling. Heat is transferred from the fluid inside the heat exchanger, through the tube wall, to the external spray water, and then dissipated to the air via forced draft (mainly through latent heat of spray water evaporation and sensible heat exchange with air). |
| Internal Circulation System (Closed Loop) | – Medium: Soft water (demineralized/purified water). – Connection: Connected directly to the target equipment (e.g., furnaces) to form a closed-loop system. – Function: Removes heat generated by the target equipment and delivers it to the cooling unit for dissipation. |
| External Circulation System (Spray Cooling) | – Medium: Spray water (ordinary service water). – Connection: Does not come into contact with the internal circulation water; heat exchange occurs only through the copper tube surface heat exchanger (cooling coil) inside the tower. – Function: Dissipates the heat transferred from the internal circulation through spray water and forced airflow. |
| Automatic Control | Motor (fan/spray pump) starts/stops or speed is automatically regulated based on water temperature setpoints for energy-efficient operation. |
Application Areas
- Medium/High Frequency Induction Heating Equipment: Provides circulating cooling for induction heating power supplies, induction coils, and capacitor banks.
- Through-Heating Furnaces: Cooling support for the overall heating process of bars and workpieces.
- Quenching Furnaces: Cooling guarantee for quenching equipment in heat treatment production lines.
- Smelting Furnaces: Cooling of the furnace body and power system of medium frequency coreless induction melting furnaces.
- Welding Equipment: Cooling support for high frequency brazing and welding units.
- Other Industrial Equipment: Various heat treatment and casting equipment requiring closed-loop circulating water cooling.
Company Profile
A professional enterprise specializing in heat treatment technology services and the R&D, manufacturing, and sales of high-temperature electric furnaces.
The company focuses on developing high-temperature electric furnaces covering a full temperature range of -100℃ to 2600℃. Its products include experimental electric furnaces, vacuum atmosphere furnaces, industrial kilns, and medium-frequency induction heating equipment. Main products include box furnaces, tube furnaces, lifting furnaces, pusher kilns, bogie furnaces, rotary kilns, tunnel kilns, and various specialized medium frequency furnaces.
The company adheres to technological innovation and has passed ISO9001 and EU CE certifications. It owns 21 registered trademarks, 29 patents, and 27 software copyrights.
Payment Methods
TT
Shipment Methods
The electric furnace is packaged in three layers: first wrapped in foam paper, then wrapped in plastic film, and finally packed in a wooden crate.
Frequently Asked Questions (FAQ)
- What equipment is a square cooling tower suitable for?
Mainly suitable for medium-frequency furnaces, high-frequency furnaces, through-heating furnaces, quenching equipment, and various industrial circulating cooling systems.
- What is the difference between a closed-loop cooling tower and an open-loop cooling tower?
In a closed-loop cooling tower, the process circulating water does not directly contact the air, maintaining better water quality and reducing scaling and contamination.
- Why is softened water recommended?
Softened water reduces scaling on heat exchangers and pipes, extending equipment lifespan.
- Does the equipment support automatic control?
Yes, the fan operation can be automatically controlled based on the circulating water temperature.
- Is the cooling tower suitable for continuous operation?
Yes, it can meet the cooling needs of equipment such as induction melting furnaces for long-term continuous production.
